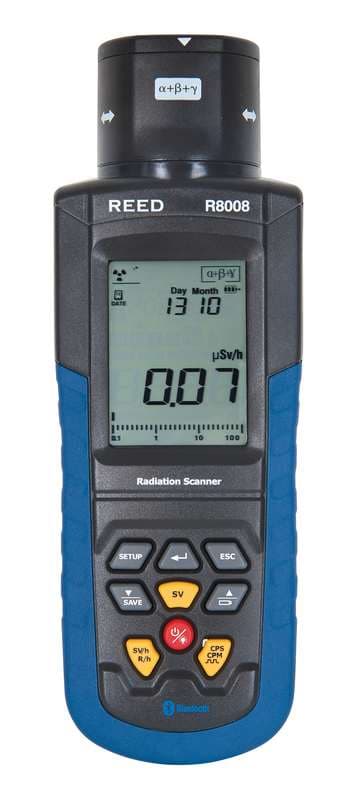

Reed R8008 Radiation Dosimeter
REED R8008 Portable Radiation Dosimeter: detects Alpha, Beta, Gamma, and X radiation; range 0.0001 to 1000μSv/h. Automatic selection of measurement range.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R8008 is a portable radiation dosimeter for field and industrial use. Detects Alpha, Beta, Gamma, and X radiation; automatic selection of measurement range; average time and pulse counting functions; large backlit LCD display with bargraph indicator; and accumulation of radiation detection values and conversions between different measurement units.
Published specifications include Accumulated Radiation Accuracy: <10% (less than 500μSv/h) <20%(less than 600μSv/h); Radiation Dose Range: 0.0001 to 1000μSv/h; Pulse Dose Rate Range: 0 to 4000cpm/cps.
User-adjustable alarms (audio/visual indicators). Internal memory stores up to 4000 groups of data internally. Bluetooth connectivity wirelessly streams data to computer via software. Low battery indicator and auto shut off. Power supply: 4 AA Batteries. Product certifications: CE.
Specifications
| Accuracy | |
| Accumulated Radiation Accuracy | <10% (less than 500μSv/h) <20%(less than 600μSv/h) |
| Ranges | |
| Radiation Dose Range | 0.0001 to 1000μSv/h |
| Pulse Dose Rate Range | 0 to 4000cpm/cps |
| Power | |
| Power Supply | 4 AA Batteries |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity | 10 to 80% |
| General | |
| Measured Rays | Alpha, Beta, Gamma, X |
| Dose Value | 0.001μSv to 9999Sv |
| Accumulated Pulse Dose Rate | 0 to 9999 |
| Sensitivity | Alpha: From 4.0 MeV |
| Beta | From 0.2 MeV |
| Gamma | From 0.02 MeV |
| X | From 0.02 MeV |
| Display | Dual LCD |
| Adjustable Alarms | Yes (Audible/Visual Indicators) |
| Average Time Function | 2 to 120 seconds |
| Natural Environment Reading | 0 to 0.2μSv/h |
| Datalogging Capabilities | Yes |
| Date Stamp | Yes |
| Internal Memory | Yes (up to 4000 groups of data) |
| Auto Shut-off | Yes (after 10 mins/off) |
| PC Connectivity | Yes (Wireless via Bluetooth) |
| Software | Yes (Included) |
| Software OS Compatibility | Windows XP / 7 / 8 / 10 |
| Product Certifications | CE |
| Dimensions | 7.9 x 2.8 x 1.9" (200 x 70 x 45mm) |
| Weight | 7.3oz (206g) |
