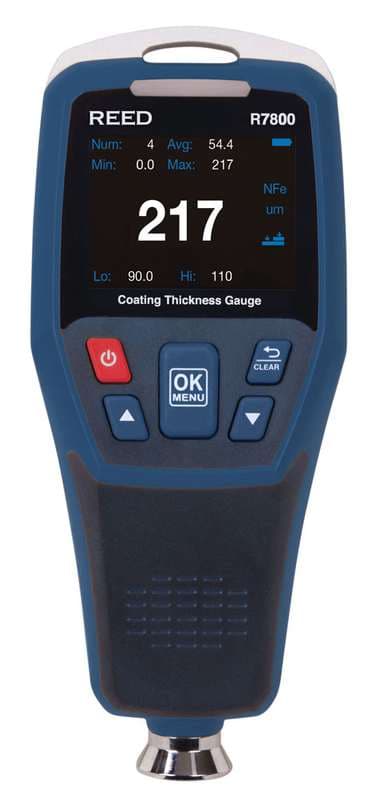

Reed R7800 Thickness Gauge
REED R7800 Coating Thickness Gauge: automatically detects ferrous and non-ferrous subs; range 0 to 1250μm 0.1 to 49.2mils. Easy-to-read color LCD display.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R7800 is a coating thickness gauge for field and industrial use. Automatically detects ferrous and non-ferrous subs; easy-to-read color LCD display; 360° screen rotation allows users to view measured readings from any angle; durable gauge and probe construction; and zero and two-point calibration ensures measurement accuracy.
Published specifications include Accuracy 0 to 1250μm: ±3% +1μm 0 to 49.21mils: ±3% +0.04mils; Measuring Range: 0 to 1250μm 0.1 to 49.2mils; Resolution: 0 to 99.9μm: 0.1μm 100 to 1250μm: 1μm 0 to 4.99mils: 0.01mils 5.0 to 49.2mils: 0.1mils; Resolution: 320 x 240 pixels.
Single or multi-point mode allows a user to set to and quickly identify whether a coating passes or f. Tri-color LEDs quickly indicate when measurements below (red), above (yellow) or within set paramete. Internal memory stores up to 500 groups of data. View stored data, charts or real-time measurement included software.
Specifications
| Accuracy | |
| Accuracy 0 to 1250μm | ±3% +1μm 0 to 49.21mils: ±3% +0.04mils |
| Ranges | |
| Measuring Range | 0 to 1250μm 0.1 to 49.2mils |
| Resolution | 0 to 99.9μm: 0.1μm 100 to 1250μm: 1μm 0 to 4.99mils: 0.01mils 5.0 to 49.2mils: 0.1mils |
| Resolution | 320 x 240 pixels |
| General | |
| Measurement Modes | Single and Continuous |
| Display | 4-digit color LCD display |
| Backlit Display | Yes (5 levels) |
| Minimum Curvature Radius | 5mm (196.85mils) |
| Minimum Area Diameter | 20mm (787.40mils) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R7800-NIST | THICKNESS GAUGE, COATING, 1250UM/50MILS W/NIST CERT | $569.00 |
