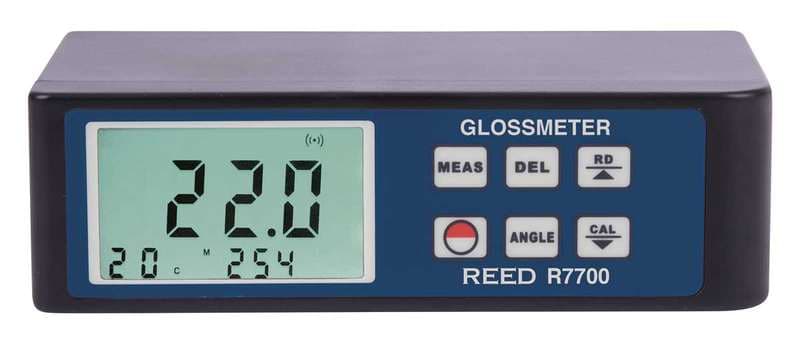

Reed R7700 Gloss Meter
REED R7700 Gloss Meter: compact design allows for one-handed operation; range 0.1 to 200 GU. Multi-angle measurement (20/ 60/ 85°).
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R7700 is a gloss meter for field and industrial use. Compact design allows for one-handed operation; multi-angle measurement (20/ 60/ 85°); backlit LCD display; auto calibration; and internal memory stores last 254 data points.
Published specifications include Accuracy: ±1.0 GU; Repeatability: ±0.5 GU; Measuring Range: 0.1 to 200 GU; Resolution: 0.1 GU.
Built-in rechargeable battery. Designed to meet ASTMD523, ASTMD1455, ASTMC584 and ASTMD2457 international standards. Includes ac adapter, calibration standard, cleaning cloth and hard carrying case. Power supply: Rechargeable Lithium Battery. Product certifications: CE / RoHS. Operating Temperature: 32 to 104°F (0 to 40°C).
Specifications
| Accuracy | |
| Accuracy | ±1.0 GU |
| Repeatability | ±0.5 GU |
| Ranges | |
| Measuring Range | 0.1 to 200 GU |
| Measuring Geometry | 20° / 60° / 85° |
| Resolution | 0.1 GU |
| Measuring Area | 7x14mm (Ellipse) |
| Power | |
| Power Supply | Rechargeable Lithium Battery |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 0 to 85% |
| General | |
| Display | LCD |
| Auto Shut-off | Yes (after 30 mins) |
| Internal Memory | Yes (up to 254 datapoints) |
| Product Certifications | CE / RoHS |
| Dimensions | 5.5 x 1.8 x 3" (140 x 45 x 75 mm) |
| Weight | 10.76oz (305g) nts.com |
