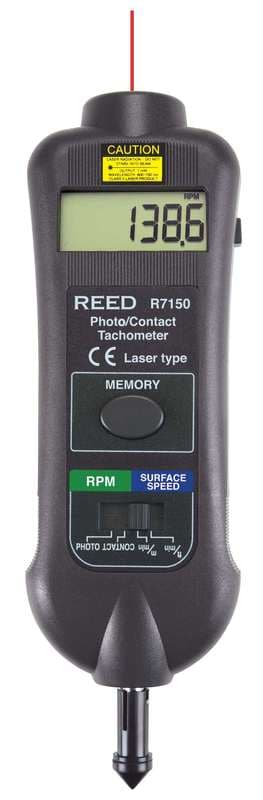

Reed R7150 Tachometer
REED R7150 Contact / Non-Contact Tachometer with Laser: dual function unit with both contact and non-contact capabilities; range 0.5 to 19,999. Provides fast and accurate RPM measurements of rotating objects and surface speed measurements m/min (meter per min) and ft/min (feet per min).
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R7150 is a contact / non-contact tachometer with laser for field and industrial use. Dual function unit with both contact and non-contact capabilities; provides fast and accurate RPM measurements of rotating objects and surface speed measurements m/min (meter per min) and ft/min (feet per min); laser provides improved accuracy at a greater distance; internal memory recalls min/max and last value; and large LCD Display reverses depending on measurement mode.
Published specifications include Basic Accuracy: ±(0.05% + 1 dgt.); RPM Range (Contact): 0.5 to 19,999; RPM Range (Photo): 10 to 99,999; Surface Speed Range: 0.05 to 1,999.9 m/min 0.2 to 6,560 ft/min.
Includes reflective tape, large and small cone tip adapters, funnel adapter, wheel adapter, batteries, and hard carrying case. Power supply: 4 x AA Batteries. Product certifications: CE. Operating Temperature: 32 to 122°F (0 to 50°C) CONE Replacement Cone Tip. Storage Temperature: -4 to 140°F (-20 to 60°C) RT100 Reflective Tape.
Specifications
| Accuracy | |
| Basic Accuracy | ±(0.05% + 1 dgt.) |
| Ranges | |
| RPM Range (Contact) | 0.5 to 19,999 |
| RPM Range (Photo) | 10 to 99,999 |
| Surface Speed Range | 0.05 to 1,999.9 m/min 0.2 to 6,560 ft/min |
| Resolution | Photo: 0.1 RPM (≤999.9) 1 RPM (>1000) |
| Target Distance | 6.5ft (2000mm) (Photo) |
| Response Time | <1 sec |
| Sampling Time | Photo: 1 sec (over 60 RPM) |
| Display Size/Type | 5 Digit LCD Display |
| Power | |
| Low Battery Indicator | Yes R7150 Contact / Non-Contact Tachometer |
| Power Supply | 4 x AA Batteries |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) CONE Replacement Cone Tip |
| Storage Temperature | -4 to 140°F (-20 to 60°C) RT100 Reflective Tape |
| Operating Humidity | 10-90% CA-05A |
| General | |
| Contact | 0.1 RPM (≤999.9) 1 RPM (>1000) |
| Surface | 0.01 m/min (≤99.9) 0.1 m/min (≥100) 0.01 ft/min (≤999.9) 1 ft/min (≥1000) |
| Visible Indicator | Yes (Laser) |
| Contact | 1 sec (over 6 RPM) |
| Internal Memory | Max, Min and Last |
| Laser Class | Class II |
| Product Certifications | CE |
| Dimensions | 8.5 x 2.6 x 1.5" |
| Weight | 10.6oz (300g) R7150- |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R7150-NIST | TACHOMETER, PHOTO/CONTACT, 99,999 RPM/19,999 RPM W/NIST CERT | $554.00 |
