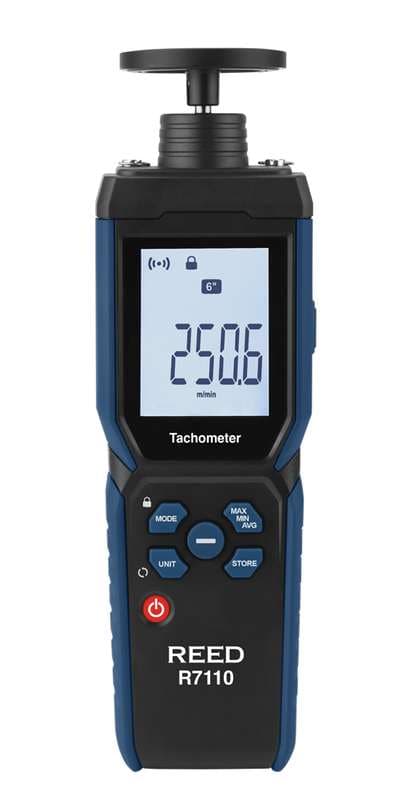

Reed R7110 Tachometer
REED R7110 Combination Contact / Laser Photo Tachometer: dual function unit with both contact and non-contact capabilities; range 10-80%. Provides fast and accurate RPM (revolutions per min) measurements of rotating objects and surface speed measurements with included contact adapters.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R7110 is a combination contact / laser photo tachometer for field and industrial use. Dual function unit with both contact and non-contact capabilities; provides fast and accurate RPM (revolutions per min) measurements of rotating objects and surface speed measurements with included contact adapters; laser provides improved accuracy at a greater distance; internal memory recalls maximum, minimum, average values and last 10 data points; and backlit and rotatable LCD Display.
Published specifications include Accuracy: ±(0.02% rdg. + 1dgt.).
Low battery indication and auto shut off. Includes contact adapter, large and small wheel adapters, funnel adapter, cone adapter, reflective tape, carrying case and batteries. Power supply: 3 x AAA Batteries. Product certifications: CE, UKCA, ROHS. Operating Temperature: 32 to 122°F (0 to 50°C). Storage Temperature: -4 to 140°F (-20 to 60°C).
Specifications
| Accuracy | |
| Accuracy | ±(0.02% rdg. + 1dgt.) |
| Power | |
| Power Supply | 3 x AAA Batteries |
| Battery Life | Approx. 20 hours |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10-80% |
| General | |
| Display | 5-Digit LCD Display |
| Rotatable Screen | Yes |
| Internal Memory | 10 Datapoints, Max, Min, Aver age and Last Reading |
| Laser Class | Class II |
| Product Certifications | CE, UKCA, ROHS |
| Dimensions | 6.9 x 2.5 x 1.5" (176 x 63 x 38mm) |
| Weight | 6.4oz (181g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R7110-NIST | TACHOMETER, PHOTO/CONTACT, 99,999RPM/19,999 RPM W/NIST CERT | $369.00 |
