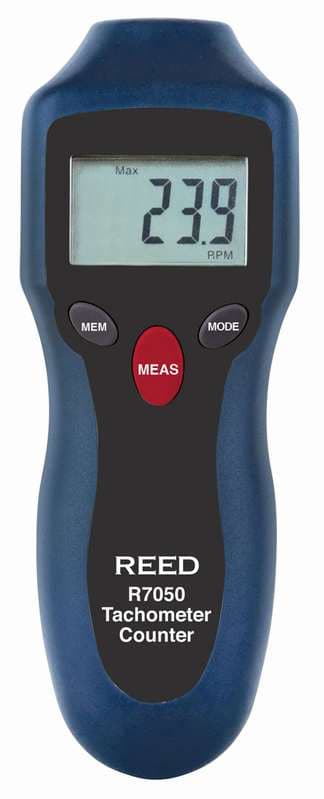

Reed R7050 Tachometer
REED R7050 Compact Photo Tachometer: provides fast and accurate RPM measurements of rotating objects without contact and revolution count of moving objects; range 2 to 99,999. Built-in laser pointer identifies target area.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R7050 is a compact photo tachometer for field and industrial use. Provides fast and accurate RPM measurements of rotating objects without contact and revolution count of moving objects; built-in laser pointer identifies target area; durable double molded plastic housing and large backlit LCD display; internal memory recalls maximum, minimum values as well as last value stored; and low battery indicator and auto shut off.
Published specifications include Basic Accuracy: ±0.05%; RPM Range (Photo): 2 to 99,999; REV Count Range: 1 to 99,999; Resolution: 0.1 RPM, 1 count.
Includes reflective tape, soft carrying case and batteries. Power supply: 9V Battery. Product certifications: CE. Operating Temperature: 32 to 122°F (0 to 50°C). Storage Temperature: -4 to 140°F (-20 to 60°C).
Specifications
| Accuracy | |
| Basic Accuracy | ±0.05% |
| Ranges | |
| RPM Range (Photo) | 2 to 99,999 |
| REV Count Range | 1 to 99,999 |
| Resolution | 0.1 RPM, 1 count |
| Target Distance | 1.6' (500mm) |
| Response Time | <1 sec |
| Sampling Time | 0.5 sec (over 120 RPM) |
| Display Size/Type | 5 Digit LCD Display |
| Power | |
| Power Supply | 9V Battery |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 10 to 90% |
| General | |
| Visible Indicator | Yes (Laser) |
| Auto Shut Off | Yes (after 10 seconds) |
| Internal Memory | Max, Min and Last |
| Laser Class | Class III |
| Product Certifications | CE |
| Dimensions | 6.3 x 2.3 x 1.5" (160 x 58 x 39mm) |
| Weight | 5.3oz (151g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R7050-NIST | TACHOMETER, PHOTO, 99,999 RPM W/NIST CERT | $319.00 |
