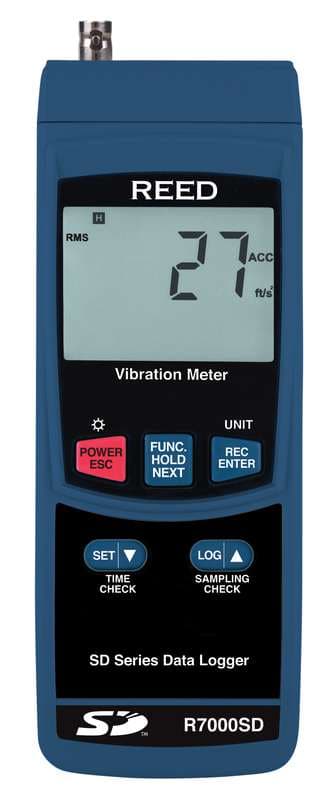

Reed R7000SD Data Logging Vibration Meter
REED R7000SD Data Logging Vibration Meter: measures velocity and acceleration to determine vibration level; range 0.5 to 199.9m/s2 0.05 to 20.39g 2 to 656ft/s2. User selectable unit of measure (metric or imperial).
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R7000SD is a data logging vibration meter for field and industrial use. Measures velocity and acceleration to determine vibration level; user selectable unit of measure (metric or imperial); rMS, Peak hold, Data hold and Max/Min functions; 10Hz to 1kHz frequency range; and basic accuracy of ±5%.
Published specifications include Acceleration Accuracy: ±(5% + 5 dgt); Velocity Accuracy: ±(5% + 5 dgt); Acceleration Measuring Range: 0.5 to 199.9m/s2 0.05 to 20.39g 2 to 656ft/s2; Acceleration Resolution: 0.1m/s2 0.01g 1ft/s2.
Real-time datalogger with integrated SD memory card. User selectable sampling rate from 1 to 3600 seconds. Easy-to-read backlit LCD display. Tripod mount for long-term monitoring.
Specifications
| Accuracy | |
| Acceleration Accuracy | ±(5% + 5 dgt) |
| Velocity Accuracy | ±(5% + 5 dgt) |
| Ranges | |
| Acceleration Measuring Range | 0.5 to 199.9m/s2 0.05 to 20.39g 2 to 656ft/s2 |
| Acceleration Resolution | 0.1m/s2 0.01g 1ft/s2 |
| Velocity Measuring Range | 0.5 to 199.9mm/s 0.05 to 19.99cm/s 0.02 to 7.87in/s |
| Velocity Resolution | 0.1mm/s 0.01cm/s 0.01in/s |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R7000SD-KIT | DATA LOGGING VIBRATION METER WITH POWER ADAPTER AND SD CARD | $899.00 | |
| R7000SD-NIST | DATA LOGGING VIBRATION METER W/NIST CERT | $1,410.00 |
