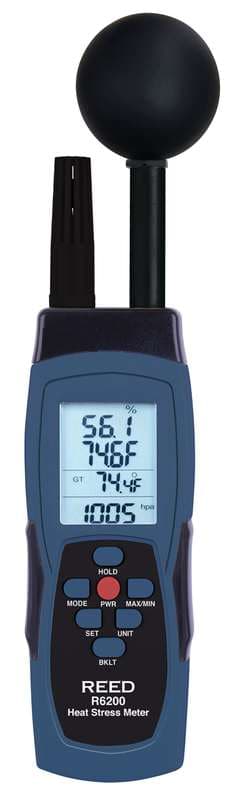

Reed R6200 Heat Stress Meter
REED R6200 WBGT Heat Stress Meter: measures ambient temperature, humidity, wet bulb temperature, black globe temperature, WBGT (wet bulb global temperature), heat stress index, dew point and pressure; range Air Temperature: 32 to 122°F (0 to 50°C).
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R6200 is a wBGT heat stress meter for field and industrial use. Measures ambient temperature, humidity, wet bulb temperature, black globe temperature, WBGT (wet bulb global temperature), heat stress index, dew point and pressure; heat Stress Index measures how hot it feels when humidity is combined with temperature, air movement and radiant heat; black Globe Temperature (GT) monitors the effects of direct solar radiation on an exposed surface; in/Out function displays the WBGT value with or without direct sun exposure; and multi-line backlit LCD display simultaneously displays 4 measurements.
Published specifications include Temperature Accuracy: Air Temperature: ±1.1°F (±0.6°C) Black Globe: 68 to 122°F (20 to 50°C): ±1.1°F (±0.6°C); Temperature Measuring Ranges: Air Temperature: 32 to 122°F (0 to 50°C); Temperature Resolution: 0.1°F/°C; Humidity Measuring Ranges: 5 to 95% RH Accuracy (@ 25°C): 10 to 70% RH: ±3%.
Maximum, Minimum, Average and Data Hold functions. Internal memory stores up to 99 measurements. User selectable unit of measure (°F or °C). User adjustable WBGT threshold alarm (audible).
Specifications
| Accuracy | |
| Temperature Accuracy | Air Temperature: ±1.1°F (±0.6°C) Black Globe: 68 to 122°F (20 to 50°C): ±1.1°F (±0.6°C) |
| Ranges | |
| Temperature Measuring Ranges | Air Temperature: 32 to 122°F (0 to 50°C) |
| Temperature Resolution | 0.1°F/°C |
| Humidity Measuring Ranges | 5 to 95% RH Accuracy (@ 25°C): 10 to 70% RH: ±3% |
| Rest of Range | ±5% |
| Humidity Resolution | 0.1% RH |
| General | |
| Black Globe | 32 to 176°F (0 to 80°C) WBGT (Indoor): 59 to 138.2°F (15 to 59°C) WBGT (Outdoor): 59 to 132.8°F (15 to 56°C) |
| Other | ±1.8°F (±1°C) |
| WBGT (Indoor) | ±2.7°F (±1.5°C) |
| WBGT (Outdoor) | ±3.6°F (±2°C) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R6200-NIST | HEAT STRESS METER, BAROMETRIC PRESSURE, WBGT W/NIST CERT | $484.00 |
