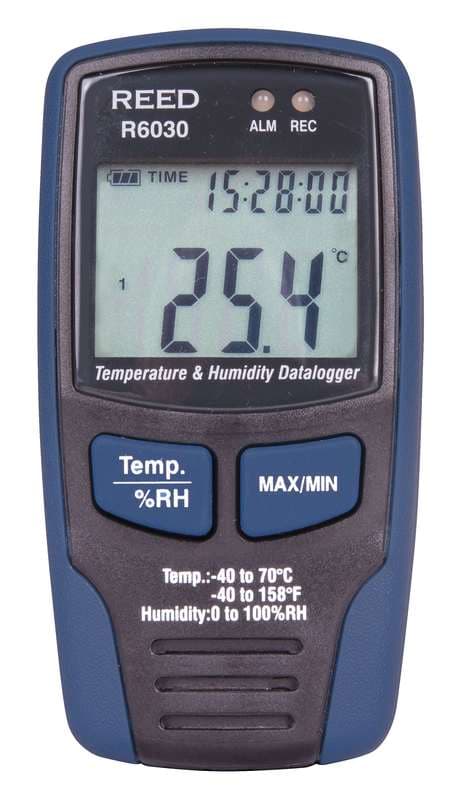

Reed R6030 Temperature & Humidity Datalogger
REED R6030 Temperature and Humidity Datalogger: stores up to 16,000 temperature and 16,000 humidity readings; range -40 to 158°F (-40 to 70°C). User selectable sampling rate from 1 sec to 24 hrs.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R6030 is a temperature and humidity datalogger for field and industrial use. Stores up to 16,000 temperature and 16,000 humidity readings; user selectable sampling rate from 1 sec to 24 hrs; visible alarm (LED) if set max/min values are exceeded; wall mount bracket and lock for long-term monitoring; and real-time clock with date and time stamp.
Published specifications include Temperature Accuracy: ±1.8°F (1.0°C); Humidity Accuracy: 0 to 20% & 80 to 100%: ±5% 20 to 40% & 60 to 80%: ±3.5% 40 to 60%: ±3%; Temperature Measuring Range: -40 to 158°F (-40 to 70°C); Temperature Resolution: 0.1°F/°C.
Dual LCD displays current temperature, humidity, min/ max and date/time. Download and analyze data directly to computer via included USB cable. Includes mounting bracket with screws, USB cable, software, security lock, and battery. Power supply: 3.6V battery. Product certifications: CE. Operating Temperature: 32 to 122°F (0 to 50°C).
Specifications
| Accuracy | |
| Temperature Accuracy | ±1.8°F (1.0°C) |
| Humidity Accuracy | 0 to 20% & 80 to 100%: ±5% 20 to 40% & 60 to 80%: ±3.5% 40 to 60%: ±3% |
| Ranges | |
| Temperature Measuring Range | -40 to 158°F (-40 to 70°C) |
| Temperature Resolution | 0.1°F/°C |
| Humidity Measuring Range | 0 to 100% RH |
| Humidity Resolution | 0.1% RH |
| Sampling Rate | Yes (2 secs to 24 hours) |
| Power | |
| Power Supply | 3.6V battery |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity | 0 to 100% R6030 Temperature / Humidity Datalogger |
| General | |
| Display | Dual Display, LCD |
| Settable Alarms | Yes (temp. and RH) |
| Internal Memory | 32k readings (16,000 temp. and 16,000 humidity) |
| PC Connectivity | Yes (USB) |
| Software | Included |
| Software OS Compatibility | Windows 7, 8, 10, 11 |
| Product Certifications | CE |
| Dimensions | 3.7 x 1.9 x 1.3" |
| Weight | 4.1 oz (115g) R6030- |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R6030-NIST | TEMPERATURE & HUMIDITY DATALOGGER, LCD, -40/158°F, -40/70°C, 0-100%RH W/NIST CERT | $484.00 |
