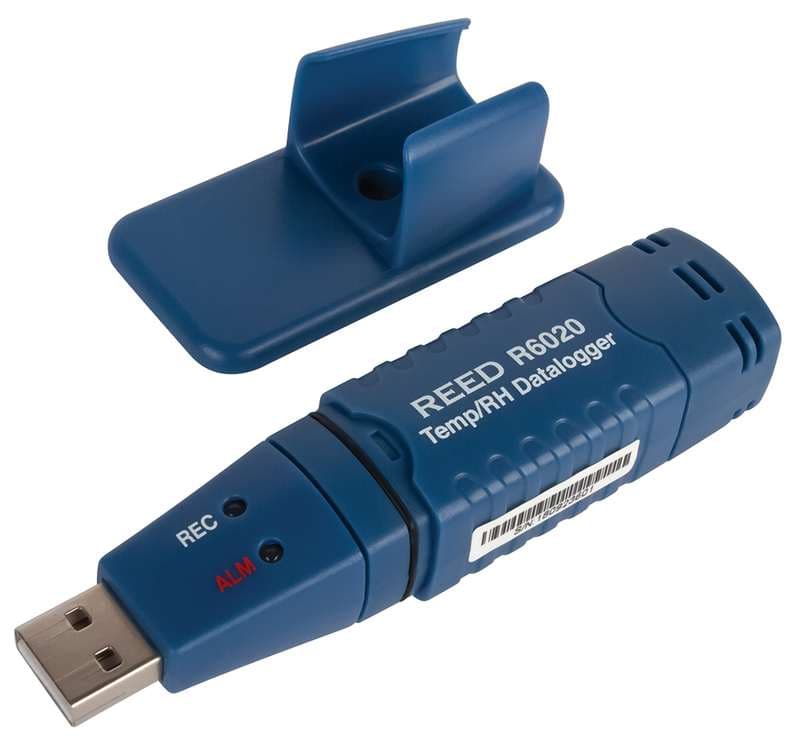

Reed R6020 Temperature & Humidity Usb Data Logger
REED R6020 Temperature / Humidity Datalogger: stores up to 16,000 temperature and 16,000 humidity readings; range -40 to 158°F (-40 to 70°C). Simply plug into the USB port to begin downloading - no cables or wires required.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R6020 is a temperature / humidity datalogger for field and industrial use. Stores up to 16,000 temperature and 16,000 humidity readings; simply plug into the USB port to begin downloading - no cables or wires required; user selectable sampling rate from 2 secs to 24 hrs; visible alarm (LED) if set max/min values are exceeded; and compatible with Windows 7, 8, 10 and 11.
Published specifications include Temperature Accuracy: ±1.8°F (1.0°C); Humidity Accuracy: 0 to 20% & 80 to 100%: ±5% 20 to 40% & 60 to 80%: ±3.5% 40 to 60%: ±3%; Temperature Measuring Range: -40 to 158°F (-40 to 70°C); Temperature Resolution: 0.1°F/°C.
Wall mount bracket and screws for long-term monitoring. Includes wall mount bracket and screws, protective USB cap, software, and battery REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstrum. Power supply: 3.6V battery. Product certifications: CE. Operating Temperature: -31 to 176°F (-35 to 80°C). Storage Temperature: -31 to 176°F (-35 to 80°C).
Specifications
| Accuracy | |
| Temperature Accuracy | ±1.8°F (1.0°C) |
| Humidity Accuracy | 0 to 20% & 80 to 100%: ±5% 20 to 40% & 60 to 80%: ±3.5% 40 to 60%: ±3% |
| Ranges | |
| Temperature Measuring Range | -40 to 158°F (-40 to 70°C) |
| Temperature Resolution | 0.1°F/°C |
| Humidity Measuring Range | 0 to 100% RH |
| Humidity Resolution | 0.1% RH |
| Sampling Rate | Yes (2 secs to 24 hours) |
| Power | |
| Power Supply | 3.6V battery |
| Environmental | |
| Operating Temperature | -31 to 176°F (-35 to 80°C) |
| Storage Temperature | -31 to 176°F (-35 to 80°C) |
| Operating Humidity | 0 to 100% |
| General | |
| Datalogging Capabilities | Yes |
| and Date Stamp | Yes |
| Settable Alarms | Yes (temp. and RH) |
| Internal Memory | 32k readings (16,000 temp. and 16,000 humidity) |
| PC Connectivity | Yes (USB) |
| Software | Included |
| Software OS Compatibility | Windows 7, 8, 10, 11 |
| Product Certifications | CE |
| Dimensions | 4 x 1 x 0.9" (101 x 25 x 23mm) |
| Weight | 6 oz (172g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R6020-NIST | TEMPERATURE & HUMIDITY USB DATA LOGGER, -40/158°F, -40/70°C, 0-100%RH W/NIST CERT | $414.00 |
