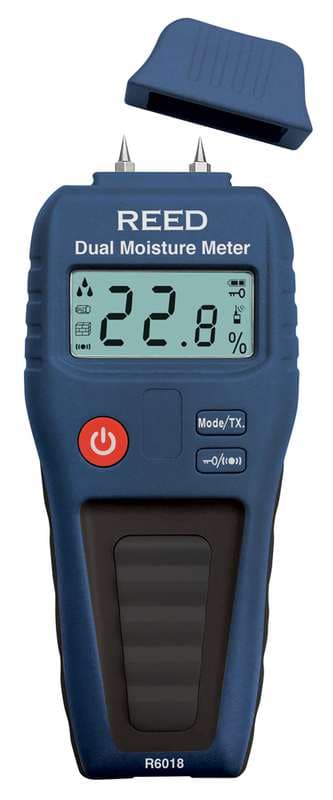

Reed R6018 Pin/Pinless Moisture Detector
REED R6018 Dual Moisture Meter, Pin/Pinless: pin and Pinless functions detect moisture in wood and building materials; accuracy Pin Mode: ±(3% + 5 dgt.). Pinless measurement depth up to 1" (25mm).
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R6018 is a dual moisture meter, Pin/Pinless for field and industrial use. Pin and Pinless functions detect moisture in wood and building materials; pinless measurement depth up to 1" (25mm); classifies moisture status as: low, medium and high; audible alert and Data Hold functions; and built-in measurement verification and battery check.
Published specifications include Accuracy: Pin Mode: ±(3% + 5 dgt.); Measuring Ranges: Pin Mode: 5 to 50% (wood); 1.5 to 33% (building materials); Resolution: 0.1%.
Low battery indicator and auto shut-off. Replaceable pins. Includes pins, protective cap and battery REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstr. Power supply: 9V Battery. Product certifications: CE. Operating Temperature: 41 to 113°F (5 to 45°C).
Specifications
| Accuracy | |
| Accuracy | Pin Mode: ±(3% + 5 dgt.) |
| Ranges | |
| Measuring Ranges | Pin Mode: 5 to 50% (wood); 1.5 to 33% (building materials) |
| Resolution | 0.1% |
| Sensor Type | Dual Function (Contact Pins/Pinless) |
| Power | |
| Power Supply | 9V Battery |
| Environmental | |
| Operating Temperature | 41 to 113°F (5 to 45°C) |
| Storage Temperature | 32 to 122°F (0 to 50°C) |
| Operating Humidity | 0 to 80% |
| General | |
| Pinless Mode | 0 to 99.9% Depth Detection: (wood and building materials) |
| Pin mode | 0.3" (8mm) |
| Pinless mode | up to 1" (25mm) |
| Display | LCD Display |
| Audible Alert Indicator | Audible tone (increased intensity as moisture level rises) |
| Replaceable Pins | Yes |
| Auto Shut-off | Yes (after 2 mins) |
| Product Certifications | CE |
| Dimensions | 6.7 x 2.6 x 1.2" (170 x 65 x 30mm) |
| Weight | 4.2oz (120g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R6018-KIT | WATER DAMAGE/RESTORATION KIT | $239.00 |
