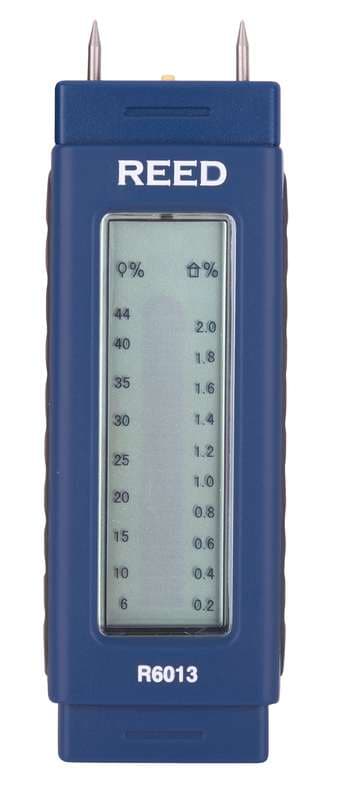

Reed R6013 Pin Moisture Detector
REED R6013 Pocket Size Moisture Detector: measures wood and building material moisture; range Wood: 6 - 44% M.C.. Detects moisture in sawn timber, sheet rock, cardboard, plaster, concrete and mortar.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R6013 is a pocket size moisture detector for field and industrial use. Measures wood and building material moisture; detects moisture in sawn timber, sheet rock, cardboard, plaster, concrete and mortar; compact size with belt clip; durable impact-proof plastic housing; and built-in measurement verification and battery check.
Published specifications include Accuracy: Wood: ±1%; Measuring Range: Wood: 6 - 44% M.C.; Resolution: Wood: 1%.
Replaceable pins. Low battery indicator and auto shut-off. Includes protective cap and batteries. Power supply: 3x CR2032 batteries. Product certifications: CE. Operating Temperature: 32 to 104°F (0 to 40°C).
Specifications
| Accuracy | |
| Accuracy | Wood: ±1% |
| Ranges | |
| Measuring Range | Wood: 6 - 44% M.C. |
| Resolution | Wood: 1% |
| Sensor Type | Contact Pins |
| Power | |
| Power Supply | 3x CR2032 batteries |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity | 0-85% |
| General | |
| Materials | 0.2 - 2.0% M.C. |
| Materials | ±0.05% |
| Materials | 0.1% |
| Display | LCD (Bargraph) |
| Replaceable Pins | Yes |
| Auto Shut-off | Yes (after 15 mins) |
| Product Certifications | CE |
| Dimensions | 5.1 x 1.6 x 1" (130 x 40 x 25mm) |
| Weight | 3.5 oz (100g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R6013-NIST | PIN MOISTURE DETECTOR W/NIST CERT | $249.00 |
