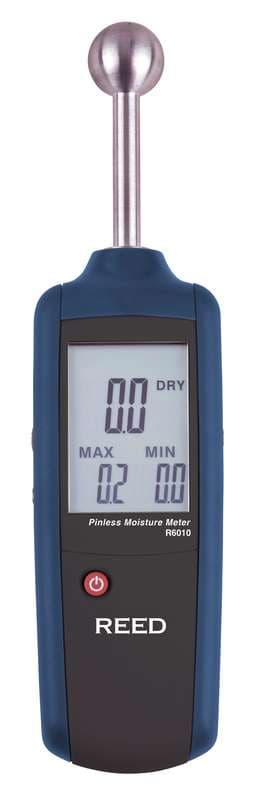

Reed R6010 Pinless Moisture Detector
REED R6010 Pinless Moisture Detector: non-invasive measurements, run sensor over surface being tested without scratching or penetrating the surface; range 0 - 100% M.C.. Classifies moisture status as: dry, at risk or wet.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R6010 is a pinless moisture detector for field and industrial use. Non-invasive measurements, run sensor over surface being tested without scratching or penetrating the surface; classifies moisture status as: dry, at risk or wet; detects moisture content in various building materials; measurement depth from 0.8 to 1.6" (20 to 40mm); and data Hold and Min/Max functions.
Published specifications include Measuring Range: 0 - 100% M.C.; Resolution: 0.1%.
User adjustable alarms with audible and visual indicators. Large backlit LCD display. Low battery indicator and auto shut-off. Includes batteries. Power supply: 3x AAA Batteries. Product certifications: CE.
Specifications
| Ranges | |
| Measuring Range | 0 - 100% M.C. |
| Resolution | 0.1% |
| Sensor Type | Pinless |
| Power | |
| Power Supply | 3x AAA Batteries |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity | 0-85% |
| General | |
| Depth Detection | 0.8 to 1.6" (20 to 40mm) |
| Display | LCD Display |
| Auto Shut-off | Yes (30 secs) |
| Product Certifications | CE |
| Dimensions | 9.5 x 2.5 x 1.2" (242 x 63 x 30mm) |
| Weight | 8oz (226g) |
