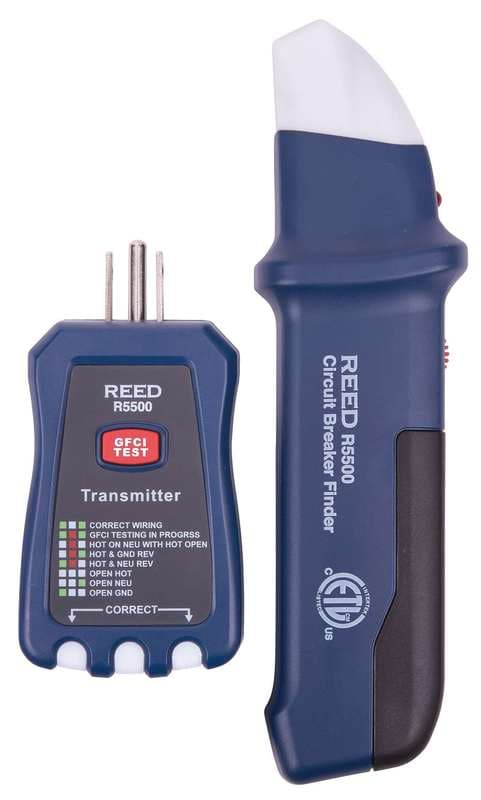

Reed R5500 Circuit Breaker Finder/Receptacle Tester/ Gfci Tester
REED R5500 Circuit Breaker Finder/Receptacle Tester: simply plug the transmitter into a receptacle and scan breaker box to identify the circuit; range 90 to 120V AC. Detects 5 3-wire receptacle wiring faults.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5500 is a circuit breaker Finder/Receptacle tester for field and industrial use. Simply plug the transmitter into a receptacle and scan breaker box to identify the circuit; detects 5 3-wire receptacle wiring faults; built-in GFCI receptacle check function; adjustable sensitivity wheel quickly identifies breaker; and audible (buzzer) and visual (LED) indicators assist in identification.
Published specifications include Voltage Range: 90 to 120V AC.
Receiver operates on one 9 volt battery (included). Includes receiver, transmitter and battery. Power supply: 9V Battery. Product certifications: ETL. Operating Temperature: 32 to 104°F (0 to 40°C). Operating Humidity: 0 to 85%.
Specifications
| Ranges | |
| Voltage Range | 90 to 120V AC |
| Power | |
| Power Supply | 9V Battery |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating Humidity | 0 to 85% |
| Storage Temperature | 4 to 140°F (-20 to 60°C) |
| General | |
| Bandwidth | 47 to 63Hz |
| Product Certifications | ETL |
| Dimensions | 4.1 x 2.2 x 1.2" (103 x 56 x 30mm) |
| Weight | 3.9oz (110g) |
| Includes | R5500 Circuit Breaker Finder, R5300 Continuity Tester |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5500-KIT | ELECTRICAL TROUBLESHOOTING KIT | $119.00 |
