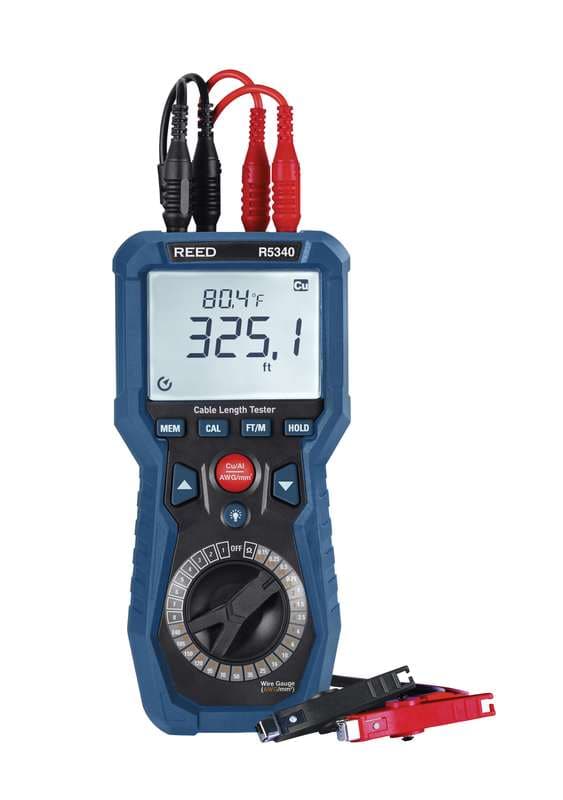

Reed R5340 Cable Length Tester
REED R5340 Cable Length Tester: measures cable lengths up to 100,000 feet (30km); range Yes ("0L"). Resistance measurement ranges of up to 1999.9mΩ.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5340 is a cable length tester for field and industrial use. Measures cable lengths up to 100,000 feet (30km); resistance measurement ranges of up to 1999.9mΩ; 20 preset cable sizes and 8 user-defined sizes; 19,999 count backlit LCD display; and user selectable unit of measure (ft/m).
Published specifications include Over-range Indicator: Yes ("0L").
Built-in kickstand. Compatible with magnetic hanging strap (sold separately). Overrange indicators. Low battery indicator and auto shut-off. Power supply: 6 x AA Batteries. Product certifications: CE.
Specifications
| Ranges | |
| Over-range Indicator | Yes ("0L") |
| Power | |
| Power Supply | 6 x AA Batteries |
| Environmental | |
| Operating Altitude | 7000' (2000m) |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating Humidity | 10 to 80% |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Storage Humidity | 10 to 80% |
| General | |
| Preset Cable Gauge Sizes | 20 |
| Gauge Sizes | 8 |
| Unit of Measure | Imperial and Metric |
| Display | 19,999 count LCD display |
| Test Lead Length | 4' (1.21m) |
| Compatible | Yes (R5900 sold separately) |
| Auto Shut-off | Yes (after 15 mins) |
| Product Certifications | CE |
| Dimensions | 8.3 x 3.9 x 2.6" (212 x 100 x 67mm) |
| Weight | 1.32lbs (600g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5340-NIST | CABLE LENGTH TESTER W/NIST CERT | $554.00 |
