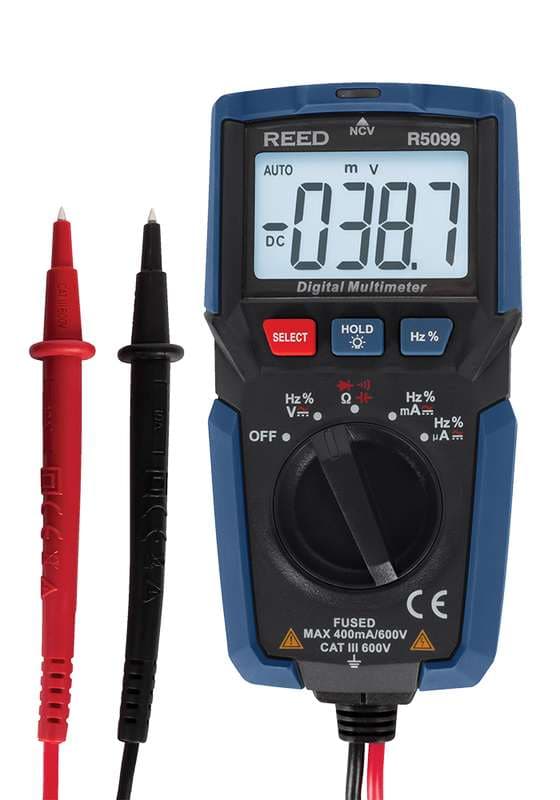

Reed R5099 Compact Multimeter W/Ncv
REED R5099 Compact Multimeter with NCV: measures AC/DC voltage and current, resistance, capacitance,frequency, diode and continuity; range AC: 4, 40, 400, 600V. Built-in non-contact voltage detector and double molded plastic housing.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5099 is a compact multimeter with NCV for field and industrial use. Measures AC/DC voltage and current, resistance, capacitance,frequency, diode and continuity; built-in non-contact voltage detector and double molded plastic housing; 4,000-count backlit LCD display; low battery indicator and auto shut-off; and cAT III 600V safety rating.
Published specifications include AC/DC Voltage Accuracy: AC: 4, 40V ±(1.2% rdg. + 5 dgt.) 400, 600V ±(2% rdg.+ 10 dgt.); AC/DC Current Accuracy: AC: 400μA, 4, 40, 400mA ±(2% rdg. + 8 dgt.); Resistance Accuracy: 400Ω, 4, 40, 400kΩ: ±(1% rdg. + 5 dgt.) 4MΩ: ±(1.2% rdg. + 10 dgt.) 40MΩ: ±(2% rdg. + 10 dgt.); AC/DC Voltage Range: AC: 4, 40, 400, 600V.
Includes test leads and batteries.
Specifications
| Accuracy | |
| AC/DC Voltage Accuracy | AC: 4, 40V ±(1.2% rdg. + 5 dgt.) 400, 600V ±(2% rdg.+ 10 dgt.) |
| AC/DC Current Accuracy | AC: 400μA, 4, 40, 400mA ±(2% rdg. + 8 dgt.) |
| Resistance Accuracy | 400Ω, 4, 40, 400kΩ: ±(1% rdg. + 5 dgt.) 4MΩ: ±(1.2% rdg. + 10 dgt.) 40MΩ: ±(2% rdg. + 10 dgt.) |
| Capacitance Accuracy | 50nF: ±(4% rdg.+ 30 dgt. 500nF: ±(3% rdg. + 15 dgt.) 5, 50, 100μF: ±(4% rdg. + 10 dgt.) |
| Ranges | |
| AC/DC Voltage Range | AC: 4, 40, 400, 600V |
| AC/DC Voltage Resolution | AC: 0.01, 0.01, 0.1, 1V |
| AC/DC Current Range | 400μA, 4, 40, 400mA |
| AC/DC Current Resolution | 0.1μA, 0.001, 0.01, 0.1mA |
| Resistance Range | 400Ω, 4, 40, 400kΩ, 4, 40MΩ |
| Resistance Resolution | 0.1, 1, 10, 100Ω, 1, 10kΩ |
| Capacitance Range | 50, 500nF, 5, 50, 100μF |
| Capacitance Resolution | 0.01, 0.1, 1, 10, 100nF |
| General | |
| DC | 400mV, 4, 40, 400, 600V |
| DC | 400mV ±(1% rdg.+ 8 dgt.) 4, 40V ±(0.5% rdg.+ 5 dgt.) 400, 600V ±(0.8% rdg.+ 5 dgt.) |
| DC | 0.1mV, 0.001, 0.01, 0.1, 1V |
| DC | 400μA, 4, 40, 400mA ±(1.8% rdg. + 5 dgt.) |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5099-KIT | ELECTRICAL TEST KIT | $95.00 | |
| R5099-NIST | COMPACT MULTIMETER W/NCV W/NIST CERT | $159.00 |
