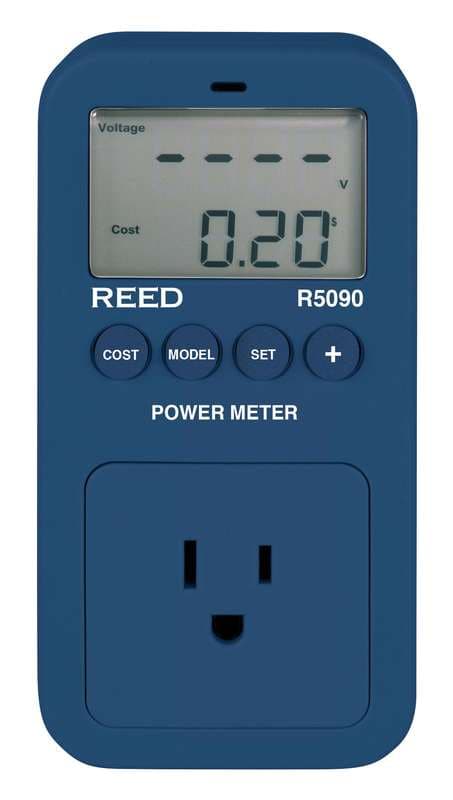

Reed R5090 Power Meter
REED R5090 Power Meter: calculates operating costs of electronic devices; range Voltage: 100 to 150VAC 60Hz. Displays 8 important units of measure (Voltage, Current, Watts, Frequency, Power Factor, Energy used (kWh), Total Cost and Elapsed Time).
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5090 is a power meter for field and industrial use. Calculates operating costs of electronic devices; displays 8 important units of measure (Voltage, Current, Watts, Frequency, Power Factor, Energy used (kWh), Total Cost and Elapsed Time); easy-to-read, dual LCD display; built-in battery backup; and conforms to UL and CSA standards.
Published specifications include Accuracy: Voltage: ±(1% rdg. + 1dgt.); Measuring Ranges: Voltage: 100 to 150VAC 60Hz; Logging Ranges: Energy: 0 to 9999kWh.
Includes battery REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstrume. Power supply: 1 x 3V (CR2032, back up battery). Product certifications: CE, ETL, Conforms to UL STD.61010-1, 61010-2-030. Operating Temperature: 32 to 122°F (0 to 50°C). Storage Temperature: 14 to 140°F (-10 to 60°C).
Specifications
| Accuracy | |
| Accuracy | Voltage: ±(1% rdg. + 1dgt.) |
| Ranges | |
| Measuring Ranges | Voltage: 100 to 150VAC 60Hz |
| Current | 0 to 15A |
| Power Factor | 0 to 1.00 |
| Frequency | 45 to 65Hz |
| Current | ±(1% rdg. + 10dgt.) @ 0.010 to 0.999A; ±(1% rdg.+ 5dgt.) @ 1.00 to 15.00A |
| Power Factor | ±(2% rdg. + 10dgt.) @ 0.30 to 0.49; ±(2% rdg. + 5dgt.) @ 0.50 to 1 |
| Frequency | ±(1% rdg. + 1dgt.) |
| Logging Ranges | Energy: 0 to 9999kWh |
| Overvoltage Category | CAT. II 150V |
| Power | |
| Power Supply | 1 x 3V (CR2032, back up battery) |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity | 10 to 90% |
| General | |
| Power | 0 to 1800W |
| Power | ±(1% rdg. + 10dgt.) @ 1.0 to 100.0W; ±(1% rdg. + 5dgt.) @ 100.0 to 999.9W; ±(1% rdg. + 1dgt.) @ 1000 ~ 1800W |
| Cost | $0 to $9999 |
| Total Time | 0min to 9999days |
| Display | Dual LCD |
| Display Update | 1 time/sec. |
| Product Certifications | CE, ETL, Conforms to UL STD.61010-1, 61010-2-030 |
| Dimensions | 5.1 x 2.6 x 1.5” (130 x 65 x 37mm) |
| Weight | 1.9 oz (155g) |
