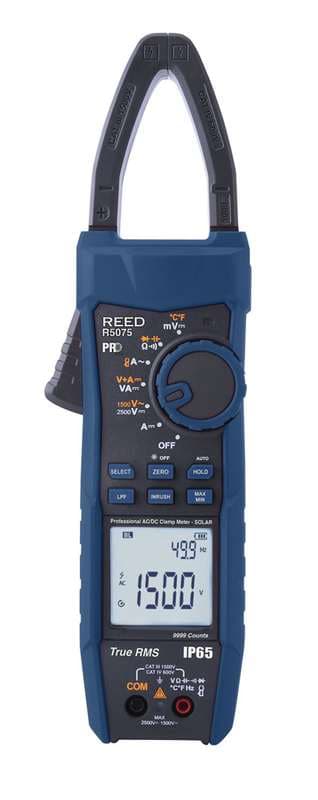

Reed R5075 Solar Clamp Meter
REED R5075 Professional Clamp Meter, Solar, CAT. III 1500V: measures AC/DC current and voltage, resistance, capacitance, frequency, and contact temperature; range 999.9A. High-resolution 9,999-count backlit LCD display.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5075 is a professional clamp meter, solar, CAT. III 1500V for field and industrial use. Measures AC/DC current and voltage, resistance, capacitance, frequency, and contact temperature; high-resolution 9,999-count backlit LCD display; dual display allows simultaneous viewing of voltage and current measurements; true RMS voltage and current for accurate measurements; and expandable AC current measurement up to 3000A with the flexible current probe (R5065, sold separately) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstrum Professional Clamp Meter CAT. III 1500V INSTRUMENTS Model R5075 Frequency Ov.
Published specifications include AC/DC Current Accuracy: AC: ±(2.5% rdg. +5dgt.); AC/DC Voltage Accuracy: ±(1.0% rdg. +5dgt.); Resistance Accuracy: ±(1% rdg. +5dgt.); AC/DC Current Range: 999.9A.
Product certifications: CE, ETL, ROHS, IP65.
Specifications
| Accuracy | |
| AC/DC Current Accuracy | AC: ±(2.5% rdg. +5dgt.) |
| AC/DC Voltage Accuracy | ±(1.0% rdg. +5dgt.) |
| Resistance Accuracy | ±(1% rdg. +5dgt.) |
| Capacitance Accuracy | ±(1% rdg. +5dgt.) |
| Ranges | |
| AC/DC Current Range | 999.9A |
| AC/DC Current Resolution | 0.1Ω, 0.001KΩ, 0.01KΩ, 0.1KΩ, 0.001MΩ, 0.01MΩ |
| AC/DC Current Resolution | 0.1A |
| AC/DC Voltage Range | AC: 999.9V, 1500V |
| AC/DC Voltage Resolution | 0.1mV, 0.1V, 1V |
| Resistance Range | 999.9Ω, 9.999KΩ, 99.99KΩ |
| Resistance Resolution | 0.1Ω, 0.001KΩ, 0.01KΩ |
| Capacitance Range | 100μF, 1000μF |
| Capacitance Resolution | 0.1μF, 1μF |
| errange Indicator | Yes gnetic Hanging |
| ervoltage Category | CAT. III 1500V, CAT. IV 600V |
| erating Temperature | 32 to 122°F (0 to 50°C) |
| orage Temperature | -4 to 140°F (-20 to 60°C) |
| General | |
| DC | ±(2.0% rdg. +5dgt.) |
| DC | 999.9mV, 999.9V, 2500V |
| trap Compatible | Yes (R5900 sold separately) |
| ntinuity Check | Audible and visual indicators if resistance ≤30Ω |
| to Power Off | Yes (after 15mins, off) exible Current |
| Probe Compatible | Yes (R5065 sold separately) |
| wer Supply | 2 x AA |
| w Opening | 1.4" (35mm) |
| oduct Certifications | CE, ETL, ROHS, IP65 |
| mensions | 11.6 x 2.9 x 2.0" (295 x 73 x 50mm) |
| ight | 19oz (540g) del Description Professional Clamp Meter, Solar, CAT. 075 |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5075-KIT | SOLAR CLAMP METER W/FLEX CLAMP | $585.00 | |
| R5075-NIST | SOLAR CLAMP METER, TRMS, 1000A AC/DC W/TEMP W/NIST CERT | $559.00 |
