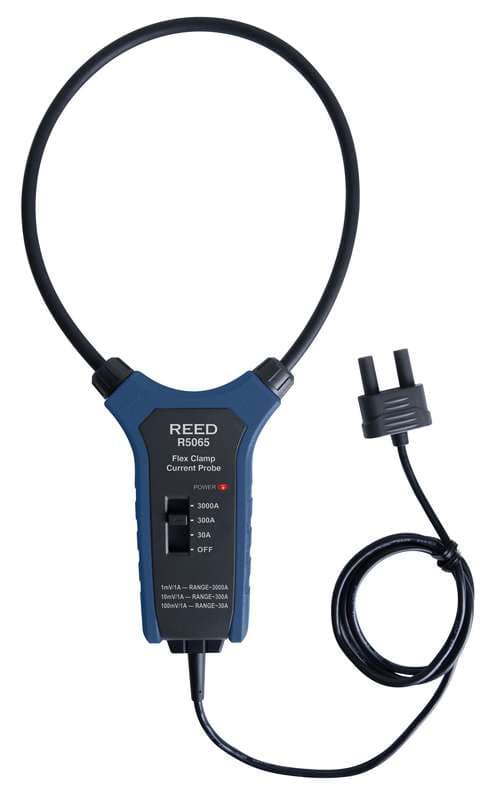

Reed R5065 Flex Clamp Adapter
REED R5065 Flexible 18" Current Probe: expands clamp meter measurement range to 3000A AC; range 30, 300, 3000A. Flexible current probe provides access to large conductors in tight spaces.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5065 is a flexible 18" current probe for field and industrial use. Expands clamp meter measurement range to 3000A AC; flexible current probe provides access to large conductors in tight spaces; ergonomic design fits in your hand and can be used while wearing protective gloves; durable double molded plastic housing; and cat. IV 600V safety rating.
Published specifications include AC/DC Current Accuracy: AC: ±(3% rdg. +5 dgt.); AC/DC Current Range: 30, 300, 3000A; AC/DC Current Resolution: 0.1, 1, 10A.
Includes BNC adapter and batteries. Power supply: 3 x AAA Batteries. Product certifications: CE, ETL. Operating Temperature: 32 to 122°F (0 to 50°C). Storage Temperature: -4 to 140°F (-20 to 60°C).
Specifications
| Accuracy | |
| AC/DC Current Accuracy | AC: ±(3% rdg. +5 dgt.) |
| Ranges | |
| AC/DC Current Range | 30, 300, 3000A |
| AC/DC Current Resolution | 0.1, 1, 10A |
| Overvoltage Category | CAT. IV 600V |
| Power | |
| Power Supply | 3 x AAA Batteries |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| General | |
| Jaw Opening | 18'' (457.2mm) |
| Cable Length | 39'' (991mm) |
| Product Certifications | CE, ETL |
