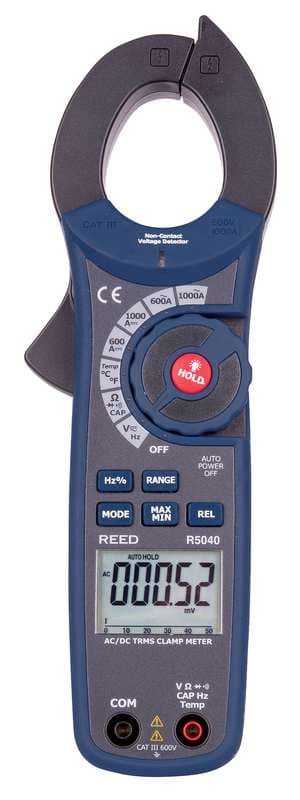

Reed R5040 Clamp Meter
REED R5040 AC/DC Clamp Meter: measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle and temperature; range 50, 1000A. 50000-count backlit LCD display and analog bargrap.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5040 is an aC/DC clamp meter for field and industrial use. Measures AC/DC current/voltage, resistance, capacitance, frequency, duty cycle and temperature; 50000-count backlit LCD display and analog bargrap; low battery and overrange indicators; built-in non-contact voltage detector with LED ind; and true RMS AC measurements.
Published specifications include AC/DC Current Accuracy: AC: ±(2.8% rdg. +30 dgt.); AC/DC Voltage Accuracy: AC: ±(1.0% rdg. +30 dgt.); Resistance Accuracy: ±(1.0% rdg. +4 dgt.) 0.1Ω, 0.001, 0.01, 0.1kΩ, 0.001, 0.01MΩ; AC/DC Current Range: 50, 1000A.
Min/Max, display hold and relative mode. Diode test and continuity check functions. Durable double molded plastic housing. Cat. III 600V safety rating.
Specifications
| Accuracy | |
| AC/DC Current Accuracy | AC: ±(2.8% rdg. +30 dgt.) |
| AC/DC Voltage Accuracy | AC: ±(1.0% rdg. +30 dgt.) |
| Resistance Accuracy | ±(1.0% rdg. +4 dgt.) 0.1Ω, 0.001, 0.01, 0.1kΩ, 0.001, 0.01MΩ |
| Capacitance Accuracy | ±(3.5% rdg. +10 dgt.) |
| Frequency Accuracy | ±(0.3% rdg. +2 dgt.) |
| Ranges | |
| AC/DC Current Range | 50, 1000A |
| AC/DC Current Resolution | 0.01, 0.1, 1A |
| AC/DC Voltage Range | AC: 500mV, 5, 50, 500, 750V |
| AC/DC Voltage Resolution | AC/DC: 0.1mV, 0.001, 0.01, 0.1, 1V |
| Resistance Range | 500Ω, 5, 50, 500kΩ, 5, 50MΩ |
| Capacitance Range | 500, 5000nF, 50, 500μF, 5mF |
| Capacitance Resolution | 0.01, 0.1nF, 0.01, 0.1μF, 0.1mF |
| Frequency Range | 10kHz |
| Frequency Resolution | 0.001Hz |
| General | |
| DC | ±(2.5% rdg. +30 dgt.) |
| DC | 500mV, 5, 50, 500, 1000V |
| DC | ±(0.1% rdg. +4 dgt.) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5040-NIST | CLAMP METER, TRMS, 1000A AC/DC W/TEMP W/NIST CERT | $289.00 |
