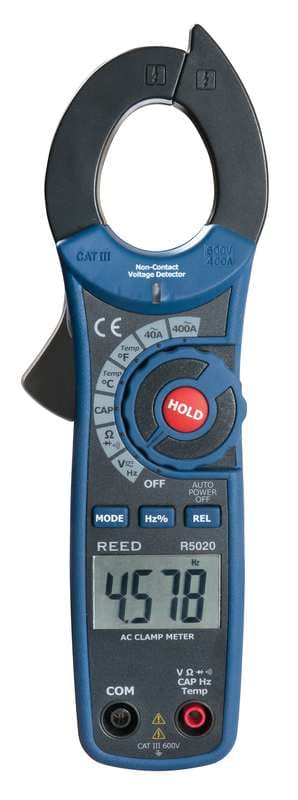

Reed R5020 Clamp Meter
REED R5020 AC Clamp Meter: measures AC current, AC/ DC voltage, resistance, capacitance, frequency, duty cycle and temperature; range 40, 400A. 4000-count LCD display with low battery and overra indicators.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5020 is an aC clamp meter for field and industrial use. Measures AC current, AC/ DC voltage, resistance, capacitance, frequency, duty cycle and temperature; 4000-count LCD display with low battery and overra indicators; built-in non-contact voltage detector with LED ind; display hold and relative mode; and diode test and continuity check functions.
Published specifications include AC Current Accuracy: AC: ±(2.5% rdg. + 8 dgt.); AC/DC Voltage Accuracy: AC: ±(1.8% rdg. + 8 dgt.); Resistance Accuracy: ±(1.5% rdg. + 2 dgt.) 0.1Ω, 0.001, 0.01, 0.1kΩ, 0.001, 0.01MΩ; AC Current Range: 40, 400A.
Durable double molded plastic housing. Cat. III 600V safety rating. Includes test leads, thermocouple wire probe, thermocouple adapter, batteries, and soft carrying.
Specifications
| Accuracy | |
| AC Current Accuracy | AC: ±(2.5% rdg. + 8 dgt.) |
| AC/DC Voltage Accuracy | AC: ±(1.8% rdg. + 8 dgt.) |
| Resistance Accuracy | ±(1.5% rdg. + 2 dgt.) 0.1Ω, 0.001, 0.01, 0.1kΩ, 0.001, 0.01MΩ |
| Capacitance Accuracy | ±(3% rdg. + 5 dgt.) |
| Frequency Accuracy | ±(1.2% rdg. + 2 dgt.) |
| Temperature Accuracy | ±(3.0% rdg. + 9°F) ±(3.0% rdg. + 5°C) |
| Ranges | |
| AC Current Range | 40, 400A |
| AC Current Resolution | 0.01, 0.1A |
| AC/DC Voltage Range | AC: 4, 40, 400, 600V |
| AC/DC Voltage Resolution | AC:0.001, 0.01, 0.1, 1V |
| Resistance Range | 400Ω, 4, 40, 400kΩ, 4, 40MΩ |
| Capacitance Range | 40, 400nF, 4, 40, 100μF |
| Capacitance Resolution | 0.01, 0.1nF, 0.01, 0.1μF |
| Frequency Range | 10MHz |
| Frequency Resolution | 0.01Hz |
| Temperature Range | -4 to 1400°F (-20 to 760°C) |
| Temperature Resolution | 1°F, 1°C |
| General | |
| DC | 400mV, 4, 40, 400, 600V |
| DC | ±(1.5% rdg. + 2 dgt.) |
| DC | 0.1mV, 0.001, 0.01, 0.1, 1V |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5020-NIST | CLAMP METER, 400A AC W/TEMP W/NIST CERT | $199.00 |
