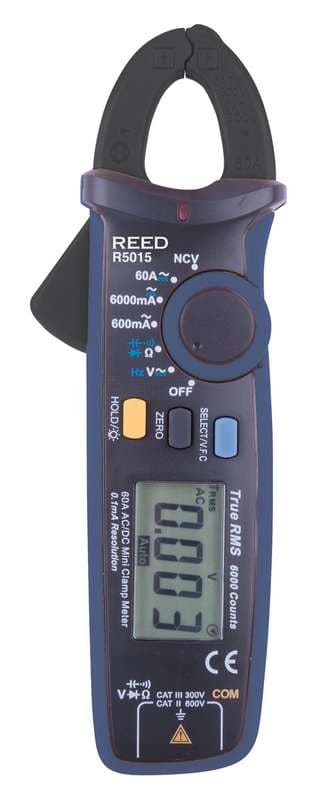

Reed R5015 Ma Clamp Meter
REED R5015 True RMS mA Clamp Meter: measures AC/DC current/voltage, resistance and capacitance; range AC: 600mA, 6000mA, 60mA /. High resolution 0.1mA (AC) and 1mA (DC).
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5015 is a true RMS ma clamp meter for field and industrial use. Measures AC/DC current/voltage, resistance and capacitance; high resolution 0.1mA (AC) and 1mA (DC); true RMS for AC current/voltage; 6000-count backlit LCD display; and built-in non-contact voltage detector with LED ind.
Published specifications include V.F.C 600mA-60A Accuracy: AC (@ 50/60Hz): 600mA ±(1.5% rdg. +10 dgt.) 6000mA ±(2.5% rdg. +5 dgt.) 60A ±(2% rdg. +5 dgt.) V.F.C ±(4% rdg. +10 dgt.); AC/DC Voltage Accuracy: AC: ±(0.8% rdg. +3 dgt.) / ±(4.0% rdg. +3 dgt.); AC/DC Current Range: AC: 600mA, 6000mA, 60mA /; V.F.C 600mA-60A Resolution: AC: 0.1mA, 1mA, 0.01A / 0.1mA, 0.01A.
V.F.C (variable frequency control) mode for air-co maintenance and diagnostics. Low battery and over range indicators. Diode test and continuity check functions. Durable double molded plastic housing.
Specifications
| Accuracy | |
| V.F.C 600mA-60A Accuracy | AC (@ 50/60Hz): 600mA ±(1.5% rdg. +10 dgt.) 6000mA ±(2.5% rdg. +5 dgt.) 60A ±(2% rdg. +5 dgt.) V.F.C ±(4% rdg. +10 dgt.) |
| AC/DC Voltage Accuracy | AC: ±(0.8% rdg. +3 dgt.) / ±(4.0% rdg. +3 dgt.) |
| Ranges | |
| AC/DC Current Range | AC: 600mA, 6000mA, 60mA / |
| V.F.C 600mA-60A Resolution | AC: 0.1mA, 1mA, 0.01A / 0.1mA, 0.01A |
| AC/DC Voltage Range | AC: 6, 60, 600V / V.F.C 200-600V |
| AC/DC Voltage Resolution | AC: 1mV, 10mV, 0.1V, 1V / 0.1V |
| General | |
| DC | 6000mA, 60A |
| DC | 6000mA ±(2% rdg. +5dgt.) 60A ±(2% rdg. +3 dgt.) |
| DC | 1mA, 0.01A |
| DC | 600mV, 6, 60, 600V |
| DC | 600mV ±(0.7% rdg. +5 dgt.) ±(0.7% rdg. +3 dgt.) |
| DC | 10μV, 1mV, 10mV, 0.1V, 1V |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5015-NIST | MA CLAMP METER, TRMS, AC/DC W/NIST CERT | $349.00 |
