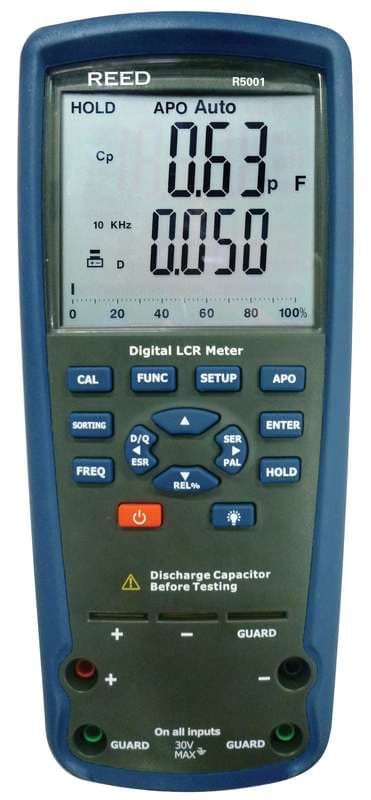

Reed R5001 Lcr Meter
REED R5001 LCR Meter: measures inductance, capacitance and resistance; range 2000.0μH 20.000/200.0/2000.0mH 20.000/200.00/2000.0H. Autoranging for AC impedance and DE resistance measurement.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R5001 is a lCR meter for field and industrial use. Measures inductance, capacitance and resistance; autoranging for AC impedance and DE resistance measurement; auto LCR smart check and measurement; series/Parallel modes; and ls/Lp/Cp with D/Q/Ø/ESR parameters.
Published specifications include Accuracy: ±(1.5% +15 dgt.) Capacitance (F=1kHz); Accuracy: ±(1.0% +10 dgt.) Resistance (F=1kHz); Accuracy: ±(1.5% +5 dgt.); Range: 2000.0μH 20.000/200.0/2000.0mH 20.000/200.00/2000.0H.
Support DCR mode 200Ω to 200MΩ. High accuracy with 4 / 5 terminal Kelvin measurement. 10kHz testing frequency and up to 100kHz output frequency. Large backlit dual LCD display. Power supply: 6 AA Batteries. Product certifications: CE.
Specifications
| Accuracy | |
| Accuracy | ±(1.5% +15 dgt.) Capacitance (F=1kHz) |
| Accuracy | ±(1.0% +10 dgt.) Resistance (F=1kHz) |
| Accuracy | ±(1.5% +5 dgt.) |
| Ranges | |
| Range | 2000.0μH 20.000/200.0/2000.0mH 20.000/200.00/2000.0H |
| Resolution | 0.1/1μH 0.01/0.1/1mH 0.01/1H |
| Range | 2000.0pF 20.000/200.00/2000.0nF 20.00/200.00/2000μF |
| Resolution | 0.01/0.1/1pF 0.01/0.1/1nF 0.1μF |
| Range | 20.000/200.00Ω 2.0000/20.000/200.00kΩ 2.0000/20.000/200.0MΩ |
| Resolution | 0.01/0.1/1Ω 0.01/0.1/1kΩ 0.1MΩ |
| Power | |
| Power Supply | 6 AA Batteries |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| General | |
| Test Frequencies | 100/120/1kHz 10kHz 100kHz |
| Display | Dual LCD display |
| Auto Power Off | Yes (after 5 minutes, off) |
| Product Certifications | CE |
| Dimensions | 8.6 x 3.7 x 2.4" (220 x 96 x 60mm) |
| Weight | 0.8lb (360g) nts.com |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R5001-NIST | LCR METER W/NIST CERT | $534.00 |
