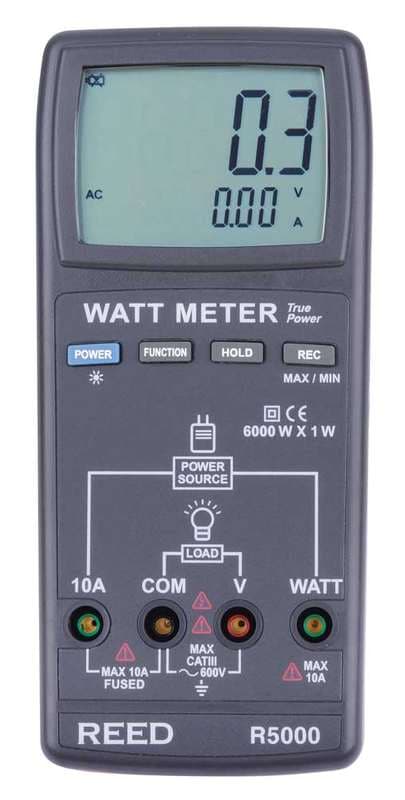

Reed R5000 Watt Meter

Name: Reed R5000 Watt Meter
Brand: Reed
SKU: R5000
Availability: InStock

Model R5000

REED R5000 Watt Meter: measures Watt, AC Voltage/Current and Power Factor; range 0 to 6000W. Large backlit dual LCD display.

From $359.00list price

Pick your exact configuration in the ordering table below to add it to your cart.

Same-day response on quotes. ISO/IEC 17025 accredited calibration available.

Overview

The REED R5000 is a watt meter for field and industrial use. Measures Watt, AC Voltage/Current and Power Factor; large backlit dual LCD display; max/Min and Data Hold Functions; cat. III 600V safety rating; and low battery indicator and auto shut off.

Published specifications include Watt Accuracy: ±(1% + 5W); AC Voltage Accuracy: ± ( 0.3 % + 0.3 V ); AC Current Accuracy: ±(0.3% + 0.03A); Watt Range: 0 to 6000W.

Includes test leads and battery. Power supply: 9V Battery or AC Adapter (Optional). Product certifications: CE R5000 Watt Meter. Operating Temperature: 32 to 104°F (0 to 40°C). Storage Temperature: -4 to 140°F (-20 to 60°C) AP-9VA-110V AC Adapter.

Specifications

Accuracy
Watt Accuracy	±(1% + 5W)
AC Voltage Accuracy	± ( 0.3 % + 0.3 V )
AC Current Accuracy	±(0.3% + 0.03A)
Power Factor Accuracy	±(1% + 2d)
Ranges
Watt Range	0 to 6000W
Watt Resolution	1W
AC Voltage Range	0 to 600V
AC Voltage Resolution	0.1V
AC Current Range	0 to 10A
AC Current Resolution	0.01A
Power Factor Range	0 to 1.0
Power Factor Resolution	0.01
Overvoltage Category	CAT. III 600V
Power
Power Supply	9V Battery or AC Adapter (Optional)
Environmental
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 140°F (-20 to 60°C) AP-9VA-110V AC Adapter
General
Display	Dual LCD display
Auto Power Off	Yes (after 10 minutes)
Product Certifications	CE R5000 Watt Meter
Dimensions	7.5 x 3.5 x 1.6" CA-05A
Weight	0.88lb (398g) R5000-

Documents

datasheetREED R5000 Datasheet

Ordering information

1 ordering models available.

Model	Description	List Price
R5000-NIST	WATT METER W/NIST CERT	$499.00
