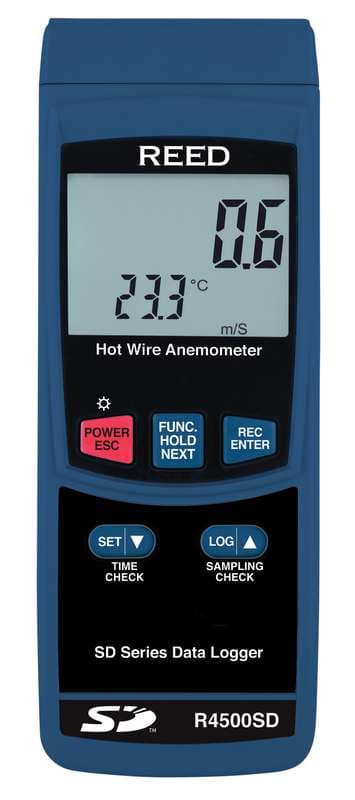

Reed R4500SD Data Logging Thermo-Anemometer
REED R4500SD Data Logging Hot Wire Thermo-Anemometer: measures air velocity (fpm, m/s, kph, mph and knots) and air temperature; range fpm: 40 to 4921. Contact temperature measurement with type J/K thermocouple option.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R4500SD is a data logging hot wire thermo-anemometer for field and industrial use. Measures air velocity (fpm, m/s, kph, mph and knots) and air temperature; contact temperature measurement with type J/K thermocouple option; thermistor sensor for fast air temperature readings; hot wire probe for precise low air velocity measurements; and real-time data logger with integrated SD memory card.
Published specifications include Accuracy: Air Velocity: ±(5% rdg + 20 fpm, 0.2 m/s, 0.3 km/h, 0.2 mph, 0.2 knot); Measuring Ranges: fpm: 40 to 4921; Resolution: fpm: 1 m/s, km/h, mph, knot: 0.1.
User selectable sampling rate from 1 to 3600 seconds. Easy-to-read backlit LCD display. Data hold and Min/Max functions. Tripod mount for long-term monitoring.
Specifications
| Accuracy | |
| Accuracy | Air Velocity: ±(5% rdg + 20 fpm, 0.2 m/s, 0.3 km/h, 0.2 mph, 0.2 knot) |
| Ranges | |
| Type | Hot Wire |
| Measuring Ranges | fpm: 40 to 4921 |
| Air Temperature | 32 to 122°F (0 to 50°C) |
| Type K Temperature | -148.0 to 2372.0°F (-100.0 to 1300°C) |
| Type J Temperature | -148.0 to 2192.0°F (-100.0 to 1200°C) |
| Air Temperature | ±0.8°C (1.5°F) Contact Temperature: ≥-58°F (-50°C) ±(0.4% + 1°F (0.5°C)) ≤-58°F (-50°C) ±(0.4% + 1.8°F (1°C)) |
| Resolution | fpm: 1 m/s, km/h, mph, knot: 0.1 |
| Temperature | 0.1°F/°C |
| Response Time | <1 second |
| General | |
| m/s | 0.2 to 25 |
| km/h | 0.7 to 90 |
| mph | 0.5 to 55.9 |
| knots | 0.4 to 48.6 |
| Probe Length | 11 to 37" (280 to 940mm) |
| Display | 5-digit, Dual LCD Display |
Documents
Ordering information
3 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R4500SD-KIT | DATA LOGGING HOT WIRE THERMO-ANEMOMETER WITH POWER ADAPTER AND SD CARD | $569.00 | |
| R4500SD-KIT2 | DATA LOGGING HOT WIRE THERMO-ANEMOMETER WITH TRIPOD, SD CARD AND POWER ADAPTER | $649.00 | |
| R4500SD-NIST | DATA LOGGING THERMO-ANEMOMETER, HOT WIRE W/NIST CERT | $899.00 |
