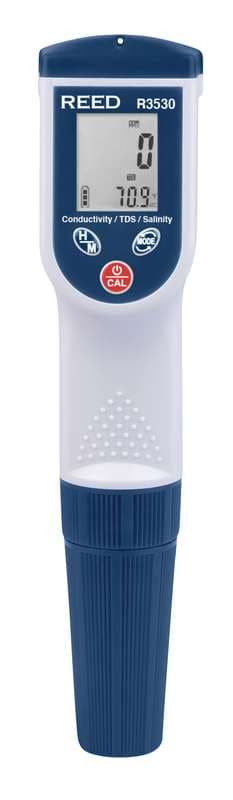

Reed R3530 Conductivity/Tds/Salinity Meter
REED R3530 Conductivity/ TDS/Salinity Meter: measures conductivity, total dissolved solids (TDS) and salt levels in a liquid; range 0 to 2000μS 2.00 to 20.00mS. Automatic temperature compensation.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R3530 is a conductivity/ TDS/Salinity meter for field and industrial use. Measures conductivity, total dissolved solids (TDS) and salt levels in a liquid; automatic temperature compensation; data hold and Min/Max functions; user selectable °F or °C; and waterproof housing meets IP57 standard.
Published specifications include Conductivity Accuracy: ±2%FS; Conductivity Accuracy: ±0.4°F (0.2°C) + 1dgt; Conductivity Measuring Range: 0 to 2000μS 2.00 to 20.00mS; Conductivity Resolution: 1μS, 0.01mS TDS (Total Dissolved Solids).
Replaceable electrode module. Low battery indicator and auto shut off. Includes conductivity standard solution,protective cap, lanyard, allen key, screws, carrying case and batteries. Power supply: 4 x AAA Batteries. Product certifications: CE, IP57 R3530-AK Replacement Allen Key and Screws. Operating Temperature: 32 to 122°F (0 to 50°C) CA-05A.
Specifications
| Accuracy | |
| Conductivity Accuracy | ±2%FS |
| Conductivity Accuracy | ±0.4°F (0.2°C) + 1dgt |
| Ranges | |
| Conductivity Measuring Range | 0 to 2000μS 2.00 to 20.00mS |
| Conductivity Resolution | 1μS, 0.01mS TDS (Total Dissolved Solids) |
| Conductivity Measuring Range | 0 to 1300ppm 1.30 to 13.00ppt |
| Conductivity Resolution | 1ppm/0.01ppt R3530-KIT Salinity Conductivity/TDS/Salinity |
| Conductivity Measuring Range | 0 to 1000ppm Meter and Solution 1.00 to 12.00ppt |
| Conductivity Resolution | 1ppm/0.01ppt R3530 Conductivity/TDS/Salinity Temperature Meter and R1430 Conductivity |
| Conductivity Measuring Range | 32 to 194°F (0 to 90°C) Standard Solution |
| Conductivity Resolution | ±0.1°F (±0.1°C) |
| Power | |
| Low Battery Indicator | Yes R1430 1413μs, 500ml |
| Power Supply | 4 x AAA Batteries |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) CA-05A |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10 to 80% R3530-KIT and Solution |
| General | |
| Display | Dual Display, LCD R3530 Conductivity/TDS/Salinity Meter |
| Data Hold | Yes Replacement Conductivity/TDS/ |
| Min/Max | Yes R3530-ELECTRODE |
| Auto Shut-off | Yes (after 10 minutes/off) Conductivity Standard Solution |
| Product Certifications | CE, IP57 R3530-AK Replacement Allen Key and Screws |
| Dimensions | 7.7 x 1.6 x 1.4" (195 x 40 x 36mm) Conductivity/TDS/Salinity Meter |
| Weight | 0.3lb (135g) with |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R3530-KIT | CONDUCTIVITY/TDS/SALINITY METER KIT W/CONDUCTIVITY SOLUTION | $179.00 | |
| R3530-NIST | CONDUCTIVITY/TDS/SALINITY METER W/NIST CERT | $409.00 |
