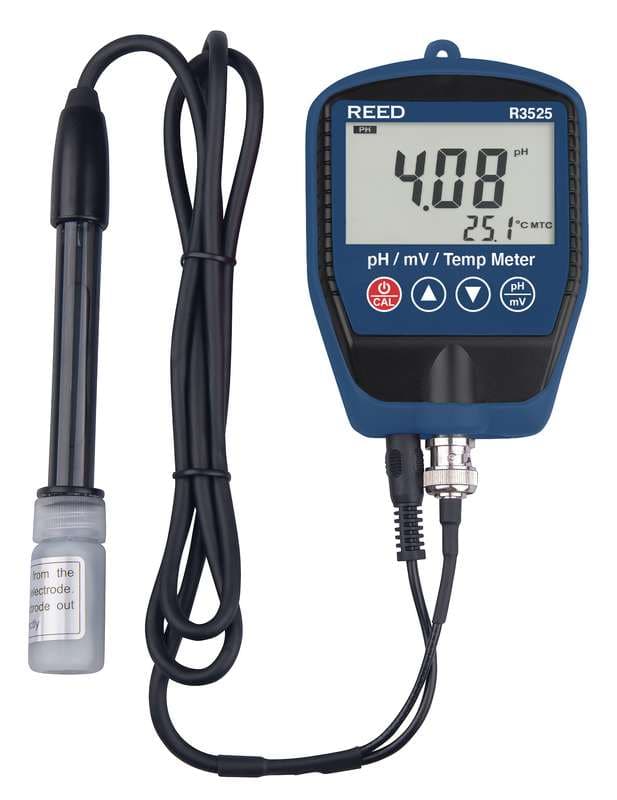

Reed R3525 Ph/Mv Meter W/Temperature
REED R3525 pH/mV Meter with Temperature: measures pH and mV levels in liquids; range 0.00 to 14.00pH -1999 to 2000mV. Microprocessor provides automatic buffer solution recognition.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R3525 is a pH/mV meter with temperature for field and industrial use. Measures pH and mV levels in liquids; microprocessor provides automatic buffer solution recognition; dual LCD displays pH or mV and Temperature simultaneously; automatic Temperature Compensation (ATC); and user selectable °F or °C.
Published specifications include Accuracy: ±(0.01pH +1dgt.) ±(2mV +1dgt.); Temperature Accuracy: ±0.4°F (0.2°C) +1dgt; Measuring Range: 0.00 to 14.00pH -1999 to 2000mV; Resolution: 0.01pH 0.1/1mV.
Designed for handheld or wall mount applications. Replaceable electrode module. Low battery indicator and auto shut off. Includes pH electrode, pH buffers, protective holster, mounting suction cup and battery. Power supply: 9V Battery or AC Adapter (optional). Product certifications: CE.
Specifications
| Accuracy | |
| Accuracy | ±(0.01pH +1dgt.) ±(2mV +1dgt.) |
| Temperature Accuracy | ±0.4°F (0.2°C) +1dgt |
| Ranges | |
| Measuring Range | 0.00 to 14.00pH -1999 to 2000mV |
| Resolution | 0.01pH 0.1/1mV |
| Temperature Measuring Range | 32 to 230°F (0 to 110°C) |
| Temperature Resolution | 0.1°F (0.1°C) |
| Power | |
| Power Supply | 9V Battery or AC Adapter (optional) |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | 10 to 80% |
| General | |
| Display | Dual Display, LCD |
| Auto Shut-off | Yes (after 10 minutes/off) |
| Product Certifications | CE |
| Dimensions | 4.3 x 3.0 x 1.2" (108 x 75 x 30mm) |
| Weight | 0.3lb (135g) |
Documents
Ordering information
4 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R3525-KIT | PH/MV METER KIT WITH BUFFER SOLUTIONS | $245.00 | |
| R3525-KIT2 | PH/MV METER KIT WITH BUFFER SOLUTIONS AND ADAPTER | $269.00 | |
| R3525-KIT3 | PH/MV METER KIT WITH BUFFER SOLUTIONS, ADAPTER AND ORP ELECTRODE | $419.00 | |
| R3525-NIST | PH/MV METER W/TEMPERATURE & NIST CERT | $449.00 |
