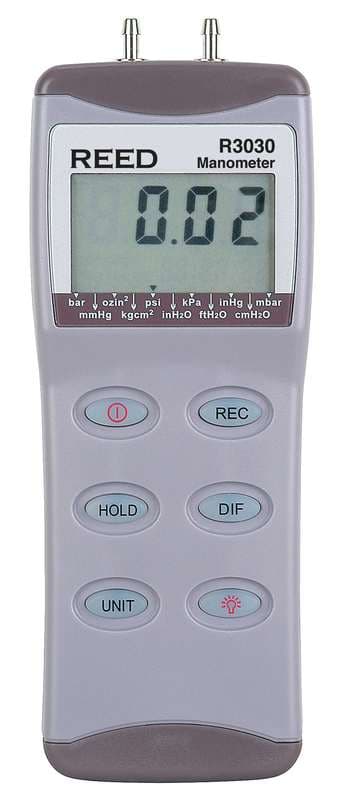

Reed R3030 Manometer
REED R3030 Digital Manometer: measures gauge and differential pressure up to 30psi; accuracy ±0.3% FS. 11 selectable units of measure: psi, poH2O, bar, mbar, kPa, inHg, mmHg, oz/in2, ftH2O, cmH2O, kgcm2.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R3030 is a digital manometer for field and industrial use. Measures gauge and differential pressure up to 30psi; 11 selectable units of measure: psi, poH2O, bar, mbar, kPa, inHg, mmHg, oz/in2, ftH2O, cmH2O, kgcm2; displays pressure and real-time clock simultaneously; large, easy-to-read backlit LCD display; and internal memory saves Max and Min measurements.
Published specifications include Pressure Accuracy: ±0.3% FS; Repeatability: ±0.2% FS.
Data hold function. Low battery indicator and auto shut off. Includes 2 connection hoses, battery, and hard carrying case. Power supply: 9V battery. Product certifications: CE. Operating Temperature: 32 to 122°F (0 to 50°C).
Specifications
| Accuracy | |
| Pressure Accuracy | ±0.3% FS |
| Repeatability | ±0.2% FS |
| Ranges | |
| Pressure Measuring Ranges | 30.00 psi; 830.4 inH2O; 2068 mbar; 206.8 kPa; 61.08 inHg; 1551 mmHg; 480.0 ozin2; 69.20 ftH2O; 2101 cmH2O; 2.109 kgcm2; 2.068 bar |
| Pressure Resolution | 0.02 psi; 0.5 inH2O; 2 mbar / cmH2O; 0.2 kPa; 0.04 inHg; 1 mmHg; 0.3 ozin2; 0.04 ftH20; 0.002 kg/cm2 / bar |
| Max Pressure | 60 psi |
| Differential Pressure | Yes |
| Response Time | 2 times/sec. |
| Power | |
| Power Supply | 9V battery |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity | 10-80% R3030 Digital Manometer, ±30psi |
| General | |
| Linearity/Hysteresis | ±0.29% FS |
| Display | 4-digit, Dual LCD Display |
| Internal Memory | Yes |
| Auto Shut-off | Yes (after 20 mins/off) |
| Product Certifications | CE |
| Dimensions | 7.2 x 2.8 x 1.2" CA-05A |
| Weight | 7.8 oz (220g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R3030-NIST | MANOMETER, 30PSI W/NIST CERT | $504.00 |
