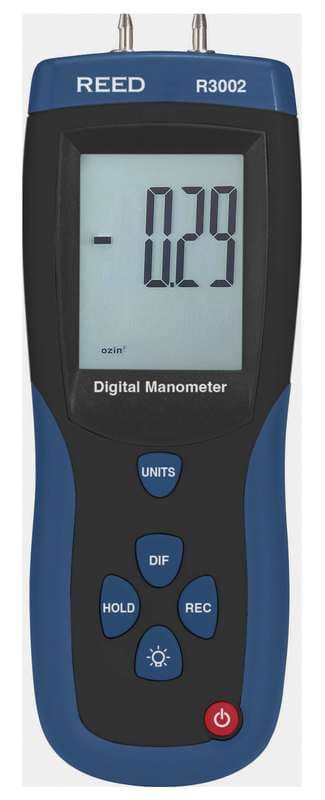

Reed R3002 Manometer
REED R3002 Digital Manometer: measures gauge and differential pressure up to 5psi; accuracy ±0.3% FS. 11 selectable units of measure: psi, inH2O, bar, mbar, kPa, inHg, mmHg, oz/in2, ftH2O, cmH2O, kg/cm2.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R3002 is a digital manometer for field and industrial use. Measures gauge and differential pressure up to 5psi; 11 selectable units of measure: psi, inH2O, bar, mbar, kPa, inHg, mmHg, oz/in2, ftH2O, cmH2O, kg/cm2; max, Min, Avg, Relative and Data hold functions; integrated real-time clock time-stamps measurements; and easy-to-read backlit LCD display.
Published specifications include Pressure Accuracy: ±0.3% FS; Repeatability: ±0.2% FS; Pressure Resolution: 0.1 inH2O /mbar / mmHg / cmH2O / 0.01 kPa / oz/in2 / ftH2O 0.001 inHg / kg/cm2/ bar / psi.
Zero button for offset correction or measurement. USB interface and software included. Tripod mount for long-term monitoring. Low battery indicator and auto shut.
Specifications
| Accuracy | |
| Pressure Accuracy | ±0.3% FS |
| Repeatability | ±0.2% FS |
| Ranges | |
| Pressure Measuring Ranges | 5.000 psi 138.3 inH2O 344.7 mbar 34.47 kPa 10.18 inHg 258.5 mmHg 80.00 oz/in2 11.53 ftH2O 351.5 cmH2O 0.351 kg/cm2 0.344 bar |
| Pressure Resolution | 0.1 inH2O /mbar / mmHg / cmH2O / 0.01 kPa / oz/in2 / ftH2O 0.001 inHg / kg/cm2/ bar / psi |
| Max Pressure | 20 psi |
| General | |
| Linearity/Hysteresis | ±0.29% FS |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R3002-NIST | MANOMETER, 5PSI W/NIST CERT | $444.00 |
