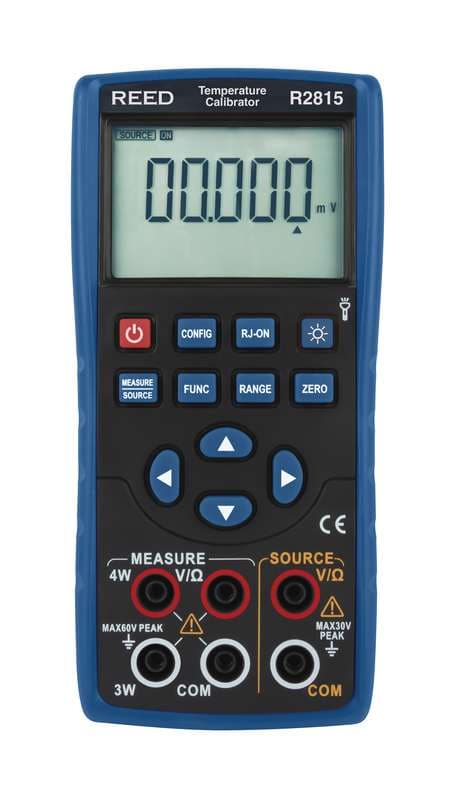

Reed R2815 Temperature Calibrator

Overview

The REED R2815 is a temperature calibrator for field and industrial use. Ideal for calibrating devices that use thermocoupl signals (e.g., meters, controllers, transmitters, and recorders); essential for applications requiring precise therm; chemical production; petroleum refineries; and manufacturing.

Power production. Steel and iron industries REED 1-877-849-2127 | info@reedinstruments.com | www.reed INSTRUMENTS Model R2815 Measuring Function Output Range Measurement Range 100mV -110 to 110mV DCV 1V -1.1 to 1.1V 30V -30V to 30V 0 to 2912°F (0 to 1600°C) A 2912 to 3632°F (1600 to 2000°C) 3632 to 4532°F (2000 to 2500°C) 1112 to 1472°F (600 to 800°C) B 1472 to 1832°F (800 to 1000°C) 1832 to 3308°F (1000 to 1820°C) 0 to 2912°F (0 to 1600°C) C 2912 to 3632°F (1600 to 2000°C) 3632 to 4190°F (2000 to 2310°C) 0 to 212°F (0 to 100°C) 212 to 518°F (100 to 270°C) D 518 to 2192°F (270 to 1200°C) TC 2192 to 4190°F (1200 to 2310°C) -58 to 32°F (-50 to 0°C) E 32 to 1832°F (0 to 1000°C) -76 to 32°F (-60 to 0°C) J 32 to 2192°F (0 to 1200°C) -148 to 32°F (-100 to 0°C) K 32 to 2501.6°F (0 to 1372°C) -328 to 32°F (-200 to 0°C) N 32 to 2372°F (0 to 1300°C) R 0 to 3212.6°F (0 to 1767°C) S 0 to 3212.6°F (0 to 1767°C) -148 to 32°F (-100 to 0°C) T 32 to 752°F (0 to 400°C) -328 to 32°F (-200 to 0°C) Pt100 32 to 752°F (0 to 400°C) 385 752 to 1472°F (400 to 800°C) -328 to 212°F (-200 to 100°C) Pt200 212 to 572°F (100 to 300°C) 385 572 to 1166°F (300 to 630°C) RTD -328 to 212°F (-200 to 100°C) (3-Wire) Pt500 212 to 572°F (100 to 300°C) 385 572 to 1166°F (300 to 630°C) -328 to 212°F (-200 to 100°C) Pt1000 212 to 572°F (100 to 300°C) 385 572 to 1166°F (300 to 630°C) Cu50 -58 to 302°F (-50 to 150°C).
