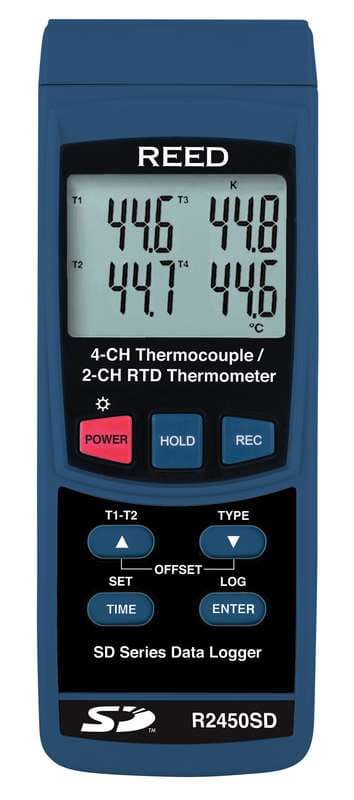

Reed R2450SD Data Logging Thermometer
REED R2450SD Data Logging Thermometer: displays up to 4 separate measurements simultaneously; range Less than 85% RH. Accepts Type K, J , R, S, E, T thermocouples and RTD probes.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R2450SD is a data logging thermometer for field and industrial use. Displays up to 4 separate measurements simultaneously; accepts Type K, J , R, S, E, T thermocouples and RTD probes; temperature differential (T1-T2), Max/Min and Data Hold functions; user selectable °C, °F; and real-time data logger with integrated SD memory card.
Published specifications include Resolution: 0.1 or 1°F/°C.
User selectable sampling rate from 1 to 3600 seconds. Easy-to-read backlit LCD display. Tripod mount for long-term monitoring. Low battery indicator and auto shut off. Power supply: 6 x AA Batteries or. Product certifications: CE Dimensions: 7 x 4.98 x 2".
Specifications
| Ranges | |
| Resolution | 0.1 or 1°F/°C |
| Type | 4-Channel Thermocouple, 2-Channel RTD |
| Response Time | 1x/second |
| Power | |
| Power Supply | 6 x AA Batteries or |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) (179 × 126.5 × 53mm) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | Less than 85% RH |
| General | |
| Display | Quad Display, LCD |
| Datalogging Capabilities | Yes |
| Date Stamp | Yes |
| External Memory | Yes, expandable up to 16GB |
| with SD card (optional) Dimensions | 7.0 x 2.7 x 1.8" |
| Auto Shut-off | Yes (after 10 minutes/off) (177 x 68 x 45mm) |
| Data Output | Yes (RS-232) |
| Product Certifications | CE Dimensions: 7 x 4.98 x 2" |
Documents
Ordering information
7 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R2450SD-KIT | DATA LOGGING THERMOMETER WITH POWER ADAPTER AND SD CARD | $369.00 | |
| R2450SD-KIT2 | DATA LOGGING THERMOMETER WITH TRIPOD, SD CARD AND POWER ADAPTER | $449.00 | |
| R2450SD-KIT3 | DATA LOGGING THERMOMETER WITH SD CARD, POWER ADAPTER AND 4 THERMOCOUPLE PROBES | $434.00 | |
| R2450SD-KIT4 | DATA LOGGING THERMOMETER WITH 4 TYPE-K THERMOCOUPLE PROBES AND CARRYING CASE | $765.00 | |
| R2450SD-KIT5 | DATA LOGGING RTD THERMOMETER WITH 2 RTD PROBES, SD CARD AND POWER ADAPTER | $749.00 | |
| R2450SD-KIT6 | DATA LOGGING THERMOMETER WITH 2 OVEN/FREEZER PROBES | $415.00 | |
| R2450SD-NIST | DATA LOGGING THERMOMETER, 4-CH THERMOCOUPLE, 2-CH RTD W/NIST CERT | $619.00 |
