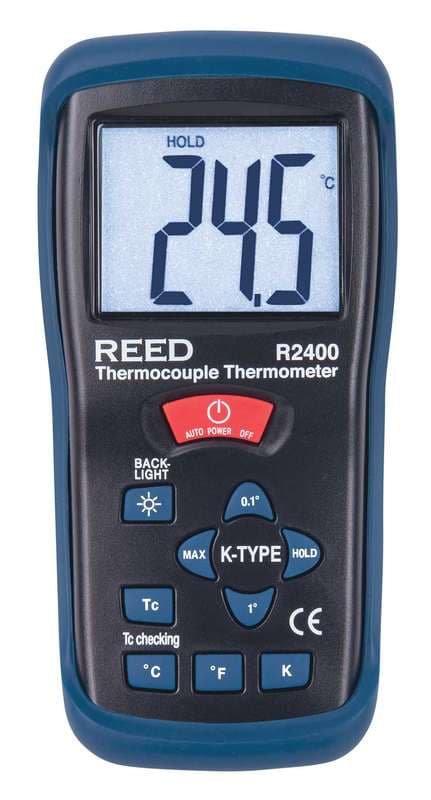

Reed R2400 Thermometer
REED R2400 Thermocouple Thermometer: type K thermocouple thermometer; range -58 to 2000°F (-50 to 1300°C), 223 to 2000K. Large, easy-to-read backlit LCD display.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R2400 is a thermocouple thermometer for field and industrial use. Type K thermocouple thermometer; large, easy-to-read backlit LCD display; user selectable °C, °F or Kelvin; max and Data Hold functions; and user selectable resolution of 0.1 or 1°F (0.1 or 1°C).
Published specifications include Accuracy: -58°F to 32°F: ±4°F 32°F to 2000°F: ±(0.5% rdg+2°F) -50°C - 0°C: ±2°C 0°C to 1000°C: ±(0.5% rdg+1°C) 1000°C to 1300°C: ±(0.8% rdg+1°C) 223K to 273K: ±5K 273K to 2000K: ±(1.0% rdg+2K); Measuring Range: -58 to 2000°F (-50 to 1300°C), 223 to 2000K; Resolution: 0.1 or 1°F/°C, 1K.
Tripod mount for long-term monitoring. Low battery indicator and auto shut off. Includes protective holster, beaded wire probe, carrying case and battery R2400-KIT Thermocouple Thermometer Kit R2400 Thermocouple Thermometer R2920 Surface Thermocouple Probe, R2940 Air/Gas Thermocouple Probe, R2950 Immersion Thermocouple Probe, TP-01 Type K Thermocouple Wire Probe and R8890 Deluxe Hard Carrying Case REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstrum. Power supply: 9V Battery. Product certifications: CE. Operating Temperature: 32 to 104°F (0 to 40°C).
Specifications
| Accuracy | |
| Accuracy | -58°F to 32°F: ±4°F 32°F to 2000°F: ±(0.5% rdg+2°F) -50°C - 0°C: ±2°C 0°C to 1000°C: ±(0.5% rdg+1°C) 1000°C to 1300°C: ±(0.8% rdg+1°C) 223K to 273K: ±5K 273K to 2000K: ±(1.0% rdg+2K) |
| Ranges | |
| Measuring Range | -58 to 2000°F (-50 to 1300°C), 223 to 2000K |
| Resolution | 0.1 or 1°F/°C, 1K |
| Type | Single Input, Thermocouple Type K |
| Response Time | 1x/second |
| Power | |
| Power Supply | 9V Battery |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity | 10 to 90% |
| General | |
| Display | 3 1/2-digit LCD |
| Auto Shut-off | Yes (after 15 minutes) |
| Product Certifications | CE |
| Dimensions | 6.4 x 3.0 x 1.5" (162 x 76 x 38.5mm) |
| Weight | 7.4oz (210g) |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R2400-KIT | THERMOMETER, THERMOCOUPLE WITH 3 PROBES AND CASE, KIT | $491.00 | |
| R2400-NIST | THERMOMETER, TYPE K THERMOCOUPLE, -58/2000°F, -50/1300°C W/NIST CERT | $280.00 |
