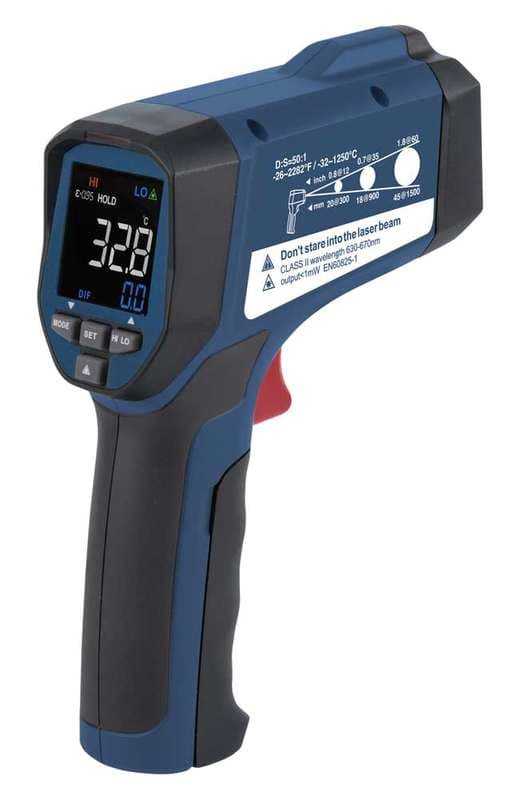

Reed R2330 Ir Thermometer
REED R2330 Infrared Thermometer: built-in laser pointer identifies target area; 50:1 distance-to-spot; range -26 to 2282°F (-32 to 1250°C). User selectable °F or °C.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R2330 is an infrared thermometer for field and industrial use. Built-in laser pointer identifies target area; user selectable °F or °C; 50:1 Distance to Spot size ratio; bright color display (EBTN); and digitally adjustable emissivity.
Published specifications include Accuracy: Basic: ±1.8% of reading or 3.6°F (1.8°C), "or": choose whichever is greater Detailed: ≥0°C: ±1.8°C or ±1.8% of reading, "or": choose whichever is greater Detailed: <0°C: ±(1.8°C+0.1°C/°C) ≥32°F: ±3.6°F or ±1.8% of reading, "or": choose whichever is greater <32°F: ±(3.6°F+0.1°F/°F); Repeatability: 0.8°C or 0.8%, whichever is greater (1.8°F or 0.8%, whichever is greater); Temperature Range: -26 to 2282°F (-32 to 1250°C); Resolution: 0.1°F (0.1°C).
Max, Min, Average and Differential readings. Audible (beep) and visual (tri-color LED) user adjustable alarms. Internal memory stores up to 5 pre-set high & low alarms and 5 emis- sivity settings. Trigger lock and tripod mount for continuous monitoring. Power supply: 9V Battery. Product certifications: CE, RoHS.
Specifications
| Accuracy | |
| Accuracy | Basic: ±1.8% of reading or 3.6°F (1.8°C), "or": choose whichever is greater Detailed: ≥0°C: ±1.8°C or ±1.8% of reading, "or": choose whichever is greater Detailed: <0°C: ±(1.8°C+0.1°C/°C) ≥32°F: ±3.6°F or ±1.8% of reading, "or": choose whichever is greater <32°F: ±(3.6°F+0.1°F/°F) |
| Repeatability | 0.8°C or 0.8%, whichever is greater (1.8°F or 0.8%, whichever is greater) |
| Ranges | |
| Temperature Range | -26 to 2282°F (-32 to 1250°C) |
| Resolution | 0.1°F (0.1°C) |
| Optical Resolution (D:S) | 50:1 |
| Laser Optimization Distance | 5.2' (1.6m) |
| Spectral Response | 8 to 14μm |
| Emissivity | 0.1 to 1.0 (Adjustable) |
| Response Time | 250ms |
| Power | |
| Power Supply | 9V Battery |
| Battery Life | Approx. 10 hours (with continuous use, backlight on) |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity Range | 10 to 90% |
| Maximum Operating Altitude | 6561' (2000m) |
| Maximum Storage Altitude | 39370' (12000m) |
| General | |
| Dual Laser | Yes |
| Backlit Display | Yes (Color EBTN) |
| High/Low Alarms | Yes (audible and visual) |
| Alarm Indicators | LED (High: Red, Low: Blue) |
| Average and Differential | Yes |
| Trigger Lock | Yes |
| Internal Memory | Yes |
| Laser Class | Class II |
| Product Certifications | CE, RoHS |
| Dimensions | 7 x 4.98 x 2'' (179 × 126.5 × 53mm) |
| Weight | 10.95oz (310g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R2330-NIST | IR THERMOMETER, PROFESSIONAL, 50:1, -26/2282°F, -32/1250°C W/NIST CERT | $469.00 |
