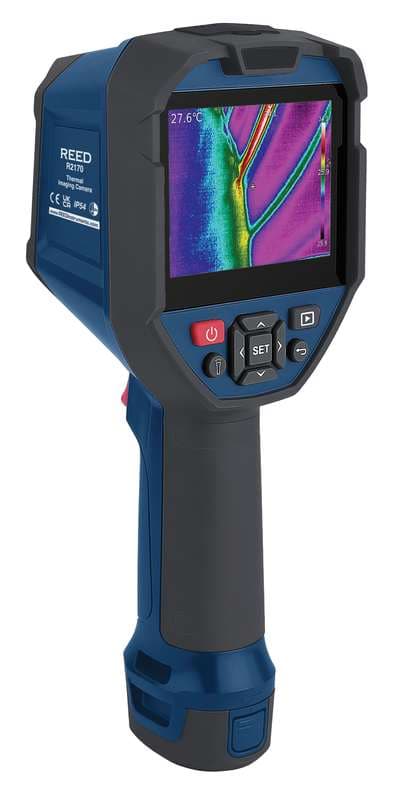

Reed R2170 Thermal Imager
REED R2170 Thermal Imaging Camera: 320 x 240 infrared resolution (76,800 pixels). 3.5" color IPS Display.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R2170 is a thermal imaging camera for field and industrial use. 320 x 240 infrared resolution (76,800 pixels); 3.5" color IPS Display; built-in dual LED flashlight; choice of 7 color palettes; and intuitive on-screen measurement tools.
Published specifications include Display Resolution: 640 x 480 pixels.
4 image modes (Thermal, Visual Image, Picture-in-Picture, Fusion (Thermal Blending)). High and Low temperature spot and alarm indicators. IP54 and 6.5' (2m) drop tested. 4x digital zoom. Power supply: 3.7V/5200mAh rechargeable Li-ion battery.
Specifications
| Ranges | |
| Display Resolution | 640 x 480 pixels |
| Power | |
| Power Supply | 3.7V/5200mAh rechargeable Li-ion battery |
| Battery Life | Approx. 3.5 hours |
| General | |
| Image Capture Modes | 2 (Single/Time-Lapse) |
| Digital Zoom | Yes (2x/4x) |
| Image Format | JPG |
| LED Flashlight | Yes (Dual) |
| External Memory | Micro SD card |
| Auto shut-off | Yes (user adjustable 5/10/ 20/30/45/60/90 mins) |
| Charge System | In Camera or Battery (USB-C) |
| Charge Time | Approx. 4 hours |
| PC Connectivity | USB Cable (USB-C) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R2170-NIST | THERMAL IMAGER, 320x240, 1022°F/550°C W/NIST CERT | $1,970.00 |
