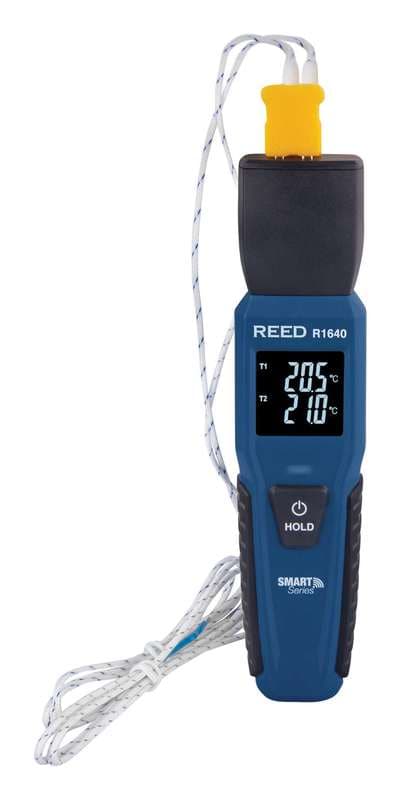

Reed R1640 Thermocouple Thermometer
REED R1640 Thermocouple Thermometer: displays 2 temperature measurements simultaneously; range -328 to 2501°F (-200 to 1372°C). Easy to operate, designed for one hand operation.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R1640 is a thermocouple thermometer for field and industrial use. Displays 2 temperature measurements simultaneously; easy to operate, designed for one hand operation; integrated display provides flexibility for use wi mobile device; magnetic backing allows instrument to be mounted t metallic surfaces; and data Hold function.
Published specifications include Accuracy: >-148°F (-100°C): ±0.05% rdg. + 1.8°F (1°C); Measuring Range: -328 to 2501°F (-200 to 1372°C); Resolution: 0.1°F/°C; Humidity Range: 10 to 90%.
User selectable °F , or °C. Low battery indicator and auto shut off. Tripod mount for long-term monitoring. Real-time data logger. Power supply: 4 x AAA Batteries with Tripod and Carrying Case. Product certifications: CE, UKCA, FCC, IC ID with 4 Type-K Thermocouple Maximum Probes and Carrying Case.
Specifications
| Accuracy | |
| Accuracy | >-148°F (-100°C): ±0.05% rdg. + 1.8°F (1°C) |
| Ranges | |
| Measuring Range | -328 to 2501°F (-200 to 1372°C) |
| Resolution | 0.1°F/°C |
| Thermometer Type | Contact (Type-K) |
| Temperature Inputs | 2 |
| Sampling Rate | Yes |
| Humidity Range | 10 to 90% |
| Power | |
| Low Battery Indicator | Yes Thermocouple Thermometer |
| Power Supply | 4 x AAA Batteries with Tripod and Carrying Case |
| Battery Life | Approx. 50 hours |
| Environmental | |
| Operating Altitude | 6561' (2000m) |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 122°F (-10 to 50°C) R1640 Thermocouple Operating Thermometer |
| Storage Humidity Range | 10 to 90% |
| General | |
| Display | Multi-Line Enhanced |
| Display Size | 1.3" (34mm) |
| Datalogging Capabilities | Yes (with Smart Series App) |
| Date Stamp | Yes (with Smart Series App) |
| Auto Shut-off | Yes (adjustable) |
| Tripod Mountable | Yes R1640-KIT |
| Magnetic Backing | Yes Data Logging Smart Series |
| Connectivity | Bluetooth® 5.0 Thermometer, R1500 Tripod Bluetooth® Range: Up to 246' (75m) and CA-05A Medium Soft Max # of Carrying Case |
| Connected Devices | 6 |
| Software | REED Smart Series App (iOS and Android) R1640-KIT2 App Supported Data Logging Smart Series |
| Languages | English, French Thermocouple Thermometer |
| Product Certifications | CE, UKCA, FCC, IC ID with 4 Type-K Thermocouple Maximum Probes and Carrying Case |
| Dimensions | 6.4 x 1.5 x 1" |
| Weight | 3.3oz (95g) R8890 Large |
Documents
Ordering information
4 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R1640-KIT | THERMOCOUPLE THERMOMETER, 2-CH, BLUETOOTH SMART SERIES WITH TRIPOD AND CARRYING CASE | $245.00 | |
| R1640-KIT2 | THERMOCOUPLE THERMOMETER, 2-CH, BLUETOOTH SMART SERIES W/ 4 TYPE K THERMOCOUPLES AND CASE | $565.00 | |
| R1640-KIT3 | THERMOCOUPLE THERMOMETER, 2-CH, BLUETOOTH SMART SERIES WITH TYPE K THERMOCOUPLE | $229.00 | |
| R1640-NIST | THERMOCOUPLE THERMOMETER, 2-CH, BLUETOOTH SMART SERIES W/NIST CERT | $314.00 |
