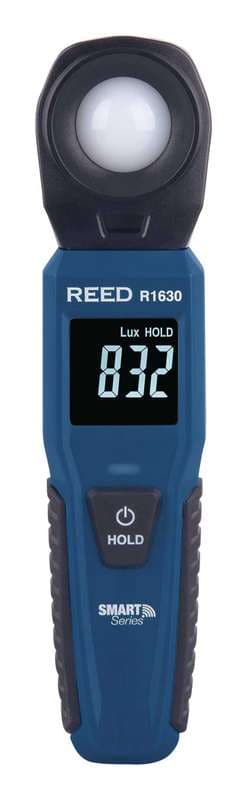

Reed R1630 Light Meter
REED R1630 Light Meter: measures up to 100,000Lux (9290 Fc); range Lux: 0 to 100,000. Easy to operate, designed for one hand operation.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R1630 is a light meter for field and industrial use. Measures up to 100,000Lux (9290 Fc); easy to operate, designed for one hand operation; integrated display provides flexibility for use without mobile device; magnetic backing allows instrument to be mounted to metallic surfaces; and data Hold function.
Published specifications include Accuracy: ≤10,000Lux (929Fc): ±(3.5% rdg.+ 10dgt) >10,000Lux (929Fc): ±(5% rdg.+ 10dgt); Measuring Range: Lux: 0 to 100,000; Resolution: Lux: 0.1, 1, 10, 100.
Low battery indicator and auto shut off. Tripod mount for long-term monitoring. Real-time data logger. User selectable sampling rate from 1 to 120 seconds.
Specifications
| Accuracy | |
| Accuracy | ≤10,000Lux (929Fc): ±(3.5% rdg.+ 10dgt) >10,000Lux (929Fc): ±(5% rdg.+ 10dgt) |
| Ranges | |
| Measuring Range | Lux: 0 to 100,000 |
| Resolution | Lux: 0.1, 1, 10, 100 |
| General | |
| Fc | 0 to 9290 |
| Fc | 0.1, 1, 10 |
| Display | Enhanced Black Twisted Nematic (EBTN) LCD |
| Display Size | 1.3" (34mm) |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R1630-KIT | LIGHT METER, BLUETOOTH SMART SERIES W/POWER ADAPTER AND CARRYING CASE | $245.00 | |
| R1630-NIST | LIGHT METER, BLUETOOTH SMART SERIES W/NIST CERT | $454.00 |
