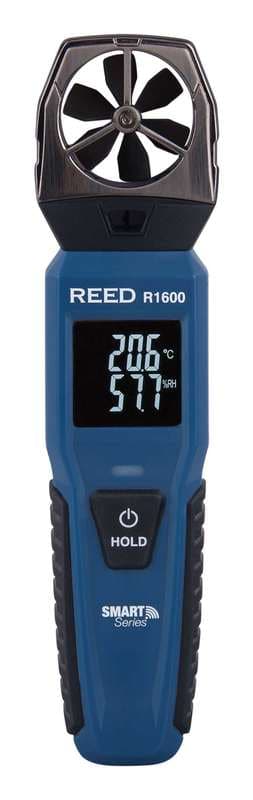

Reed R1600 Vane Anemometer
REED R1600 Vane Anemometer: measures air velocity (m/s, ft/min, km/h and mph), air temperature and humidity; range 10 to 90%. Easy to operate, designed for one hand operation.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED R1600 is a vane anemometer for field and industrial use. Measures air velocity (m/s, ft/min, km/h and mph), air temperature and humidity; easy to operate, designed for one hand operation; integrated display provides flexibility for use withou mobile device; magnetic backing allows instrument to be mounted to metallic surfaces; and data Hold function.
Published specifications include Humidity Range: 10 to 90%.
Low battery indicator and auto shut off. Tripod mount for long-term monitoring. Calculates air volume. Real-time data logger. Power supply: 4 x AAA Batteries. Product certifications: CE, UKCA, FCC, IC ID.
Specifications
| Ranges | |
| Humidity Range | 10 to 90% |
| Power | |
| Power Supply | 4 x AAA Batteries |
| Battery Life | Approx. 50 hours (sampling time dependent) |
| Environmental | |
| Operating Altitude | 6561' (2000m) |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| General | |
| Magnetic Backing | Yes |
| Connectivity | Bluetooth® 5.0 Bluetooth® Range: Up to 246' (75m) Max # of |
| Connected Devices | 6 |
| Software | REED Smart Series App (iOS and Android) |
| Languages | English, French |
| Product Certifications | CE, UKCA, FCC, IC ID |
| Dimensions | 6.9 x 1.5 x 1" (175 x 38 x 25mm) |
| Weight | 3.8oz (108g) |
Documents
Ordering information
2 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| R1600-KIT | VANE ANEMOMETER, BLUETOOTH SMART SERIES WITH TRIPOD AND CARRYING CASE | $249.00 | |
| R1600-NIST | VANE ANEMOMETER, BLUETOOTH SMART SERIES W/NIST CERT | $509.00 |
