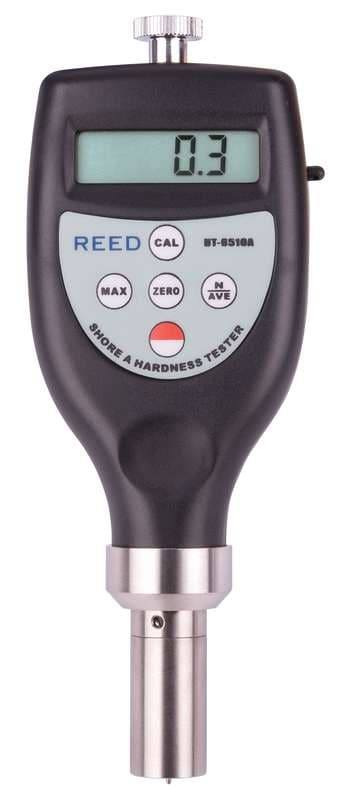

Reed HT-6510A Durometer
REED HT-6510A "A" Scale Durometer: shore "A" hardness tester designed to measure hardness of rubber, elastomers, natural rubber products, neoprene, polyester, resin, leather and soft PVC; range 10 to 90 HA.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED HT-6510A is a "A" scale durometer for field and industrial use. Shore "A" hardness tester designed to measure hardness of rubber, elastomers, natural rubber products, neoprene, polyester, resin, leather and soft PVC; meets DIN 53505, ASTM D2240, ISO 7619 and JISK 7215; 4-digit, LCD display; pocket-sized model with integrated probe; and maximum and Average functions.
Published specifications include Measuring Range: 10 to 90 HA; Resolution: 0.1 HA.
Zero adjustment button. Low battery indicator and auto shut off. Includes wrist strap, test block, batteries and hard carrying case. Power supply: 2 AAA Batteries. Product certifications: CE. Operating Temperature: 32 to 104°F (0 to 40°C).
Specifications
| Ranges | |
| Measuring Range | 10 to 90 HA |
| Resolution | 0.1 HA |
| Sampling Time | 1 sec. |
| Power | |
| Power Supply | 2 AAA Batteries |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 20 to 90% |
| General | |
| Deviation | ±1 HA |
| Display | 4-digit, LCD |
| Product Certifications | CE |
| Dimensions | 6.4 x 2.6 x 1.5" (162 x 65 x 38mm) |
| Weight | 6.1oz (173g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| HT-6510A-NIST | DUROMETER, “A” SCALE W/NIST CERT | $679.00 |
