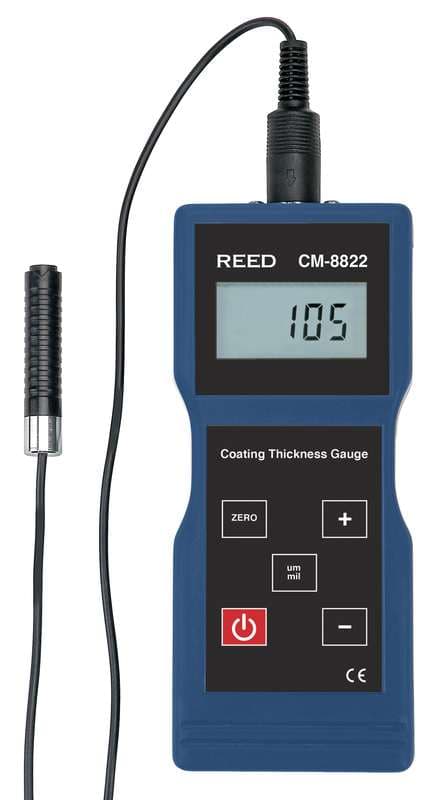

Reed CM-8822 Thickness Gauge
REED CM-8822 Coating Thickness Gauge: measures the thickness of non-magnetic coatings on magnetic or non-magnetic metal substrates; range 0 to 40mils (0 to 1000μm). User selectable μm/mils.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED CM-8822 is a coating thickness gauge for field and industrial use. Measures the thickness of non-magnetic coatings on magnetic or non-magnetic metal substrates; user selectable μm/mils; probe allows for readings in tight spaces; large, easy-to-read LCD display; and automatic probe recognition.
Published specifications include Accuracy: <100μm: ±2μm >100μm: ±3% of rdg.; Measuring Ranges: 0 to 40mils (0 to 1000μm); Resolution: 0.1μm (0 to 99.9μm) 1μm (<100μm).
Zero adjustment button. Automatic calibration. Low battery indicator. Designed to meet ISO 2178 and ISO 2361 standards. Power supply: 4 x "AA" Batteries. Product certifications: CE.
Specifications
| Accuracy | |
| Accuracy | <100μm: ±2μm >100μm: ±3% of rdg. |
| Ranges | |
| Measuring Ranges | 0 to 40mils (0 to 1000μm) |
| Resolution | 0.1μm (0 to 99.9μm) 1μm (<100μm) |
| Sampling Time | 1 second |
| Power | |
| Power Supply | 4 x "AA" Batteries |
| Environmental | |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 20 to 90% |
| General | |
| Display | LCD |
| Length of Probes | 3' (36") |
| Product Certifications | CE |
| Dimensions | 6.3 x 2.7 x 1.25" (161 x 69 x 32mm) |
| Weight | 9oz (260g) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| CM-8822-NIST | THICKNESS GAUGE, COATING, 1000UM/40MILS W/NIST CERT | $765.00 |
