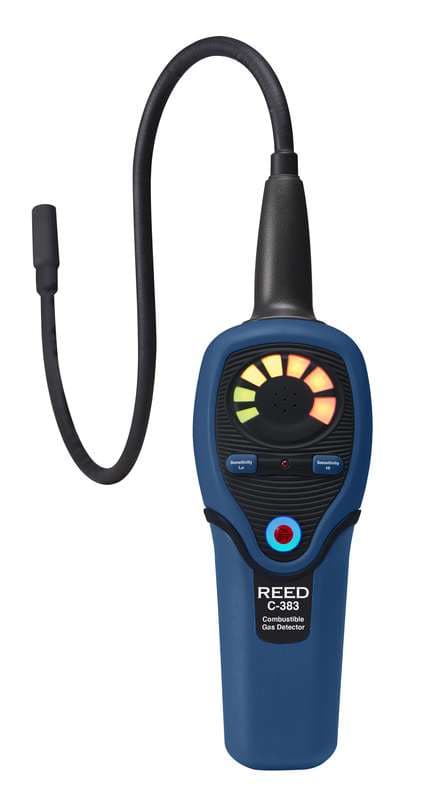

Reed C-383 Combustible Gas Detector
REED C-383 Combustible Gas Leak Detector: detects a wide range of combustible gases including; gasoline, propane, natural gas and fuel oil. Quick response and high accuracy detects small leaks.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED C-383 is a combustible gas leak detector for field and industrial use. Detects a wide range of combustible gases including; gasoline, propane, natural gas and fuel oil; quick response and high accuracy detects small leaks; 15" (390mm) gooseneck for hard to reach areas; designed for one-handed operation; and ambient concentration reset function.
User adjustable sensitivity (High/Low). Tricolor visual indicator. Audible (buzzer) and visual (LED) alarm indicators. Self test sequence on start-up. Power supply: 4 AA Batteries. Product certifications: CE, RoHS.
Specifications
| Ranges | |
| Sensor Type | Heated semiconductor gas sensor |
| Response Time | Less than 1 second |
| Power | |
| Power Supply | 4 AA Batteries |
| Battery Life | Approx. 40 hours |
| General | |
| Detected Gases | Natural Gas, Methane, Benzene, Ethane, Propane, Butane, Acetone, Alcohol, Ammonia, Gasoline, Jet Fuel, Industrial Solvents, Lacquer, Paint Thinner |
| Sensitivity | 5ppm (Gasoline) |
| Display | Tricolor LED bar indicator |
| Alarm | Audible (buzzer) and Visual (bar indicator) |
| Sensitivity Settings | Low and High |
| Warm-up Time | 10 seconds |
| Auto Shut-off | Yes (after 10 mins) |
| Product Certifications | CE, RoHS |
| Probe Length | 15" (390mm) |
| Operating Temp. | 32 to 104°F (0 to 40°C) |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| C-383-NIST | COMBUSTIBLE GAS DETECTOR W/NIST CERT | $324.00 |
