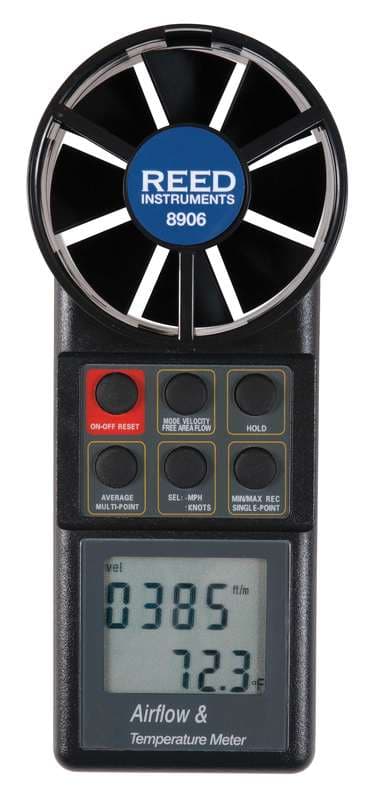

Reed 8906 Anemometer/Thermometer
REED 8906 Vane Anemometer: measures fpm, m/s, kph, mph and knots; range fpm: 80 to 6900. Dual LCD display simultaneously displays air velocity and air temperature.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The REED 8906 is a vane anemometer for field and industrial use. Measures fpm, m/s, kph, mph and knots; dual LCD display simultaneously displays air velocity and air temperature; calculates air volume (CFM); basic accuracy of ±2%; and min/Max/Avg and Data Hold Functions.
Published specifications include Accuracy: Air Velocity: ±(2% rdg. +0.2m/s); Measuring Ranges: fpm: 80 to 6900; Resolution: fpm: 1.
Low battery indicator and auto shut off. Includes hard carrying case and batteries. Power supply: 9V battery. Product certifications: CE. Operating Temperature: 32 to 122°F (0 to 50°C).
Specifications
| Accuracy | |
| Accuracy | Air Velocity: ±(2% rdg. +0.2m/s) |
| Ranges | |
| Type | Vane |
| Measuring Ranges | fpm: 80 to 6900 |
| Resolution | fpm: 1 |
| Response Time | <1 sec. |
| Sampling Rate | 1 time/sec. |
| Power | |
| Power Supply | 9V battery |
| Battery Life | 400 hours |
| Environmental | |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| General | |
| m/s | 0.4 to 35 |
| km/h | 1.4 to 126 |
| mph | 0.9 to 78 |
| knots | 0.8 to 68 |
| Temp. | 14 to 122°F (-10 to 50°C) |
| Temp. | ±1.2°F (0.6°C) |
| m/s | 0.01 km/h, mph, knot: 0.1 |
| Temp. | 0.1°F/°C |
| Vane Diameter | 2.8" (70mm) |
| Display | 4-digit, Dual LCD Display |
| Average | Yes |
| Calculation (CFM) | Yes |
| Datalogging Capabilities | Yes |
| Internal Memory | Yes |
| Auto Shut-off | Yes (after 20 mins) |
| Product Certifications | CE |
Documents
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| 8906-NIST | ANEMOMETER/THERMOMETER, ROTATING VANE W/ AIR VOLUME W/NIST CERT | $539.00 |
