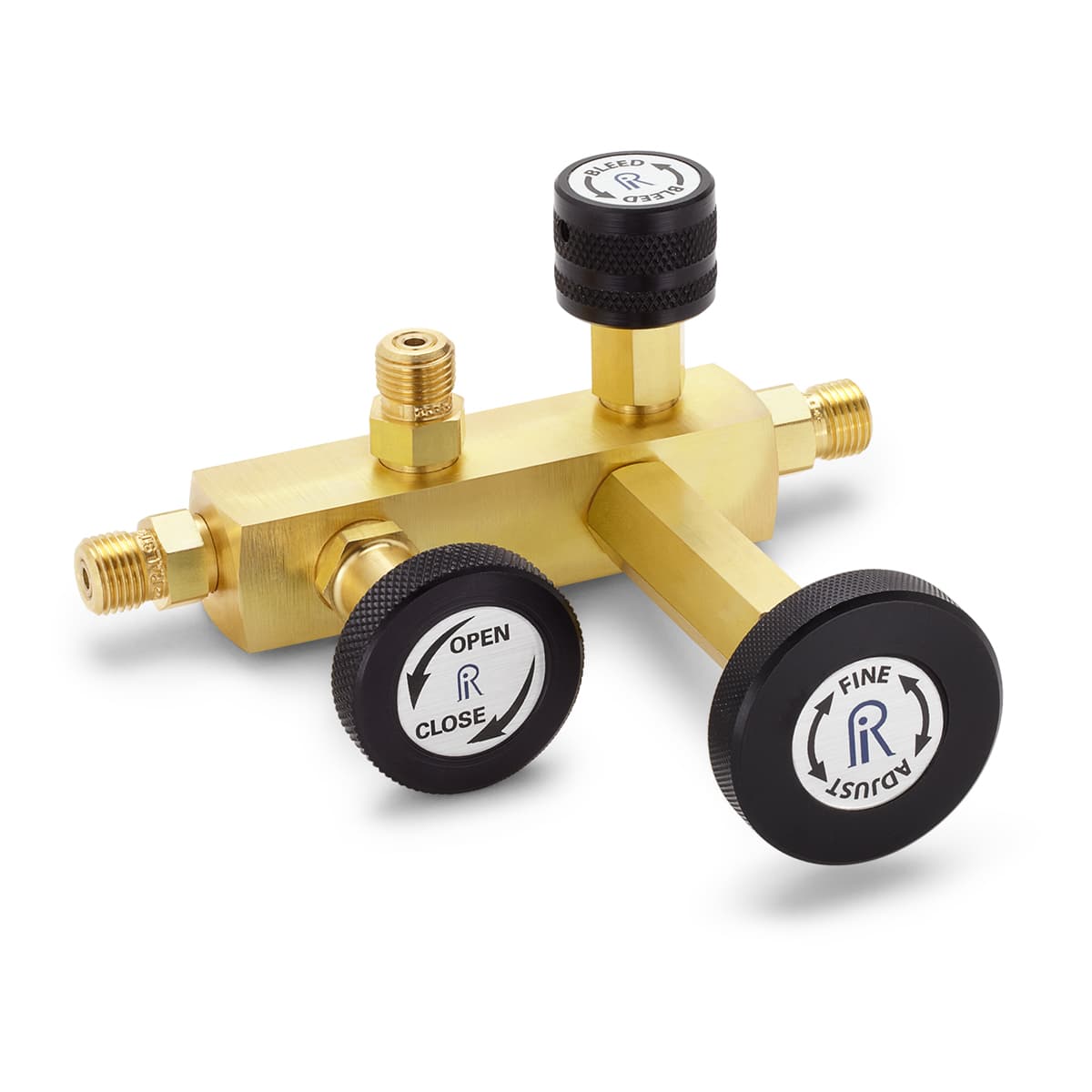

Ralston QTCM Brass Calibration Manifold
The most economical way of performing static pressure calibrations in the field using nitrogen or other compressed gas
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
Hand-held compressed gas controller for static pressure calibrations. The QTCM brass calibration manifold is rated to 3,000 psi for field calibrations with nitrogen or other compressed gas and an external pressure reference.
Choose hose and gauge-adapter configurations, multi-adapter Kit 2, LC20 digital gauge kits, or FieldLab kits from the OEM models page. Shipping and tax are confirmed when we review your order.
OEM family: QTCM Brass Calibration Manifold (https://www.ralstoninst.com/calibration-manifolds/qtcm).
Specifications
| Material | Brass |
| Max pressure | 3,000 psi / 210 bar |
| Fine adjust | Vernier / fine adjust valve |
| Country of origin | USA |
Videos
Documents
Build your part number
Configure your QTCM
Pick your options and we'll build the exact part number with a list-price estimate.
Select a included items to build your part number.
Specify the included items for a QTCM brass calibration manifold (3,000 psi) to work with your reference gauge and process connection. Shipping and tax are confirmed when we review your order.
Ordering information
7 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| QTCM-1MBA-20-2 | QTCM manifold, 1/8" MNPT gauge adapter, 20ft, 2ft hoses, (2) 1/4" MNPT process conn., nylon bag | $709.61 | |
| QTCM-2FBA-20-2 | QTCM manifold, 1/4" FNPT, gauge adapter, 20ft, 2ft hoses, (2) 1/4" MNPT process conn., nylon bag | $711.93 | |
| QTCM-2MBA-20-2 | QTCM manifold, 1/4" MNPT gauge adapter, 20ft, 2ft hoses, (2) 1/4" MNPT process conn., nylon bag | $713.45 | |
| QTCM-3KPSIG-FL | Calibration kit, QTCM calibration manifold, 3000 psi/200 bar/20 MPa FieldLab (0.1% of Reading Acc.) | $3,518.98 | |
| QTCM-KIT1-GR | QTCM manifold, 3000 PSIG LC20 digital gauge, 20ft, 2ft hoses, (2) 1/4" MNPT process conn., nylon bag | $1,651.49 | |
| QTCM-KIT1-GR-B1 | QTCM Calibration manifold, 3000 psi LC20 pressure gauge with Bluetooth, hoses and adapters | $1,776.62 | |
| QTCM-KIT2 | QTCM manifold, 1/4" FNPT, 1/8" MNPT, 1/4" MNPT gauge connections, 2 process connections, 2 hoses | $755.75 |
