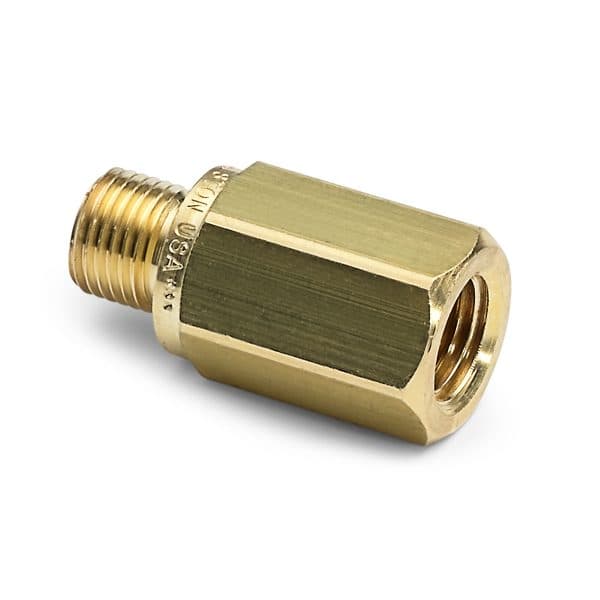

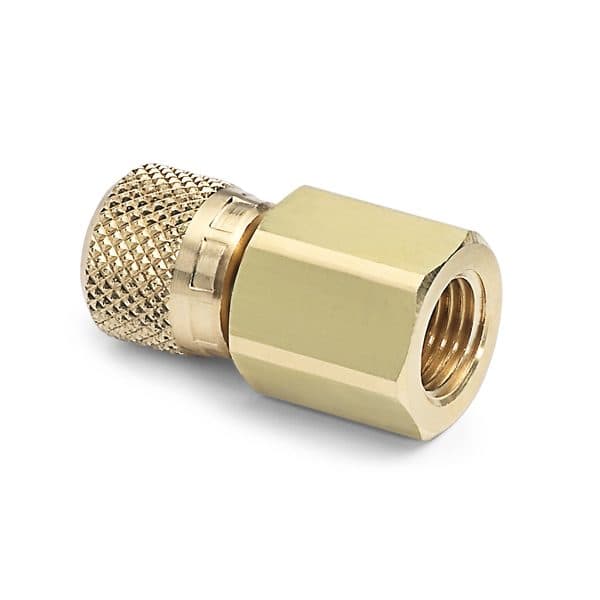

Ralston NPT Female Quick-test Gauge Adapters
Install once onto any male NPT pressure gauge, then Quick-test connect or disconnect from hand pumps and nitrogen calibration devices without remaking the NPT joint
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
NPT Female Quick-test Gauge Adapters install with thread tape once onto any male NPT pressure gauge, then use the Quick-test connection to quickly connect or disconnect from any Ralston hand pump, nitrogen calibration device, or other Quick-test adapter.
- Saves gauge threads by not remaking the NPT joint with sealant each time
- Brass or stainless steel
- Working pressure up to 5,000 psi
- Made in USA
Shipping and tax are confirmed when we review your order.
OEM family: NPT Female Quick-test Gauge Adapters (https://www.ralstoninst.com/npt-female-quick-test-gauge-adapters).
Specifications
| Family | NPT Female Quick-test Gauge Adapters |
| Process connection | Female NPT (ASME B1.20.1) |
| Instrument connection | Female Quick-test |
| Max pressure | Up to 5,000 psi |
| Materials | Brass or stainless steel |
| Country of origin | USA |
Build your part number
Configure your QTHA
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model to build your part number.
Choose size and material. Female Quick-test end mates to pumps and nitrogen devices; female NPT stays on the gauge. Shipping and tax are confirmed when we review your order.
Ordering information
3 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| QTHA-1FBA | 1/8" female NPT x female Quick-test, no check-valve, brass | $30.61 | |
| QTHA-2FBA | 1/4" female NPT x female Quick-test, no check-valve, brass | $22.31 | |
| QTHA-2FSA | 1/4" female NPT x female Quick-test, no check-valve, S.S. | $53.94 |
