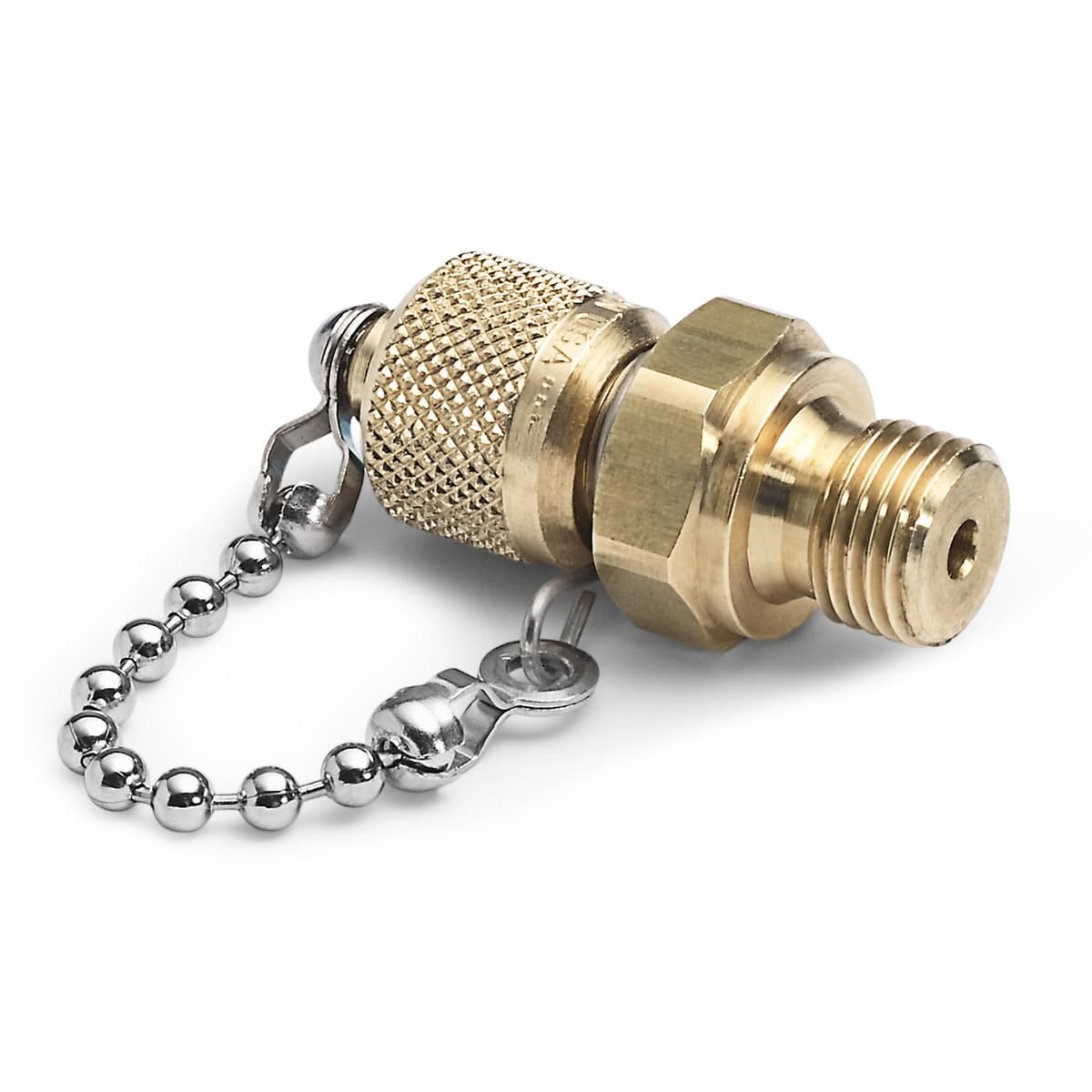

Ralston BSPP Male (RS) Quick-test Fittings
Male BSPP Quick-test fittings with bonded seal ring and cap & chain for permanent Female BSPP process connections
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
BSPP Male (RS) Quick-test fittings connect Female BSPP (ISO 228/1) parallel thread to a Quick-test hose for permanent installation where frequent calibrations are performed. A bonded seal ring makes the pressure-tight seal; a cap and chain seal bubble-tight when not calibrating.
- Connect Quick-test hoses to Female BSPP devices such as Druck, SI, Fluke, or other hand pumps and pressure calibrators
- Pressure-tight seal is made on a bonded seal ring
- Cap and chain make permanent installation practical on Female BSPP process connections
- Brass or stainless steel (by model)
- Working pressure up to 5,000 psi
- Made in USA
Part of the Ralston Quick-test system of safe, stable, leak-free connections.
Shipping and tax are confirmed when we review your order.
OEM family: BSPP Male (RS) Quick-test Fittings (https://www.ralstoninst.com/bspp-male-rs-quick-test-fittings).
Specifications
| Family | BSPP Male (RS) Quick-test Fittings |
| Process connection | Male BSPP / G (ISO 228) with bonded seal |
| Hose connection | Male Quick-test with cap and chain |
| Max pressure | 5,000 psi / 350 bar / 35 MPa |
| Materials | Brass or stainless steel (by model) |
| Country of origin | USA |
Build your part number
Configure your QTFT
Pick your options and we'll build the exact part number with a list-price estimate.
Select a model to build your part number.
Choose BSPP size and material. These fittings seal on a bonded seal ring to Female BSPP (ISO 228/1) connections. Shipping and tax are confirmed when we review your order.
Ordering information
5 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| QTFT-1MB0-RS | G 1/8" male BSPP (ISO 228/1) x male Quick-test, no check-valve, with cap and chain, brass | $33.14 | |
| QTFT-1MS0-RS | G 1/8" male BSPP (ISO 228/1) x male Quick-test, no check-valve, with cap and chain, stainless steel | $58.12 | |
| QTFT-2MB0-RS | G 1/4" male BSPP (ISO 228/1) x male Quick-test, no check-valve, with cap and chain, brass | $50.39 | |
| QTFT-2MS0-RS | G 1/4" male BSPP (ISO 228/1) x male Quick-test, no check-valve, with cap and chain, S.S. | $98.68 | |
| QTFT-3MB0-RS | G 3/8" male BSPP (ISO 228/1) x male Quick-test, no check-valve, with cap and chain, brass | $58.63 |
