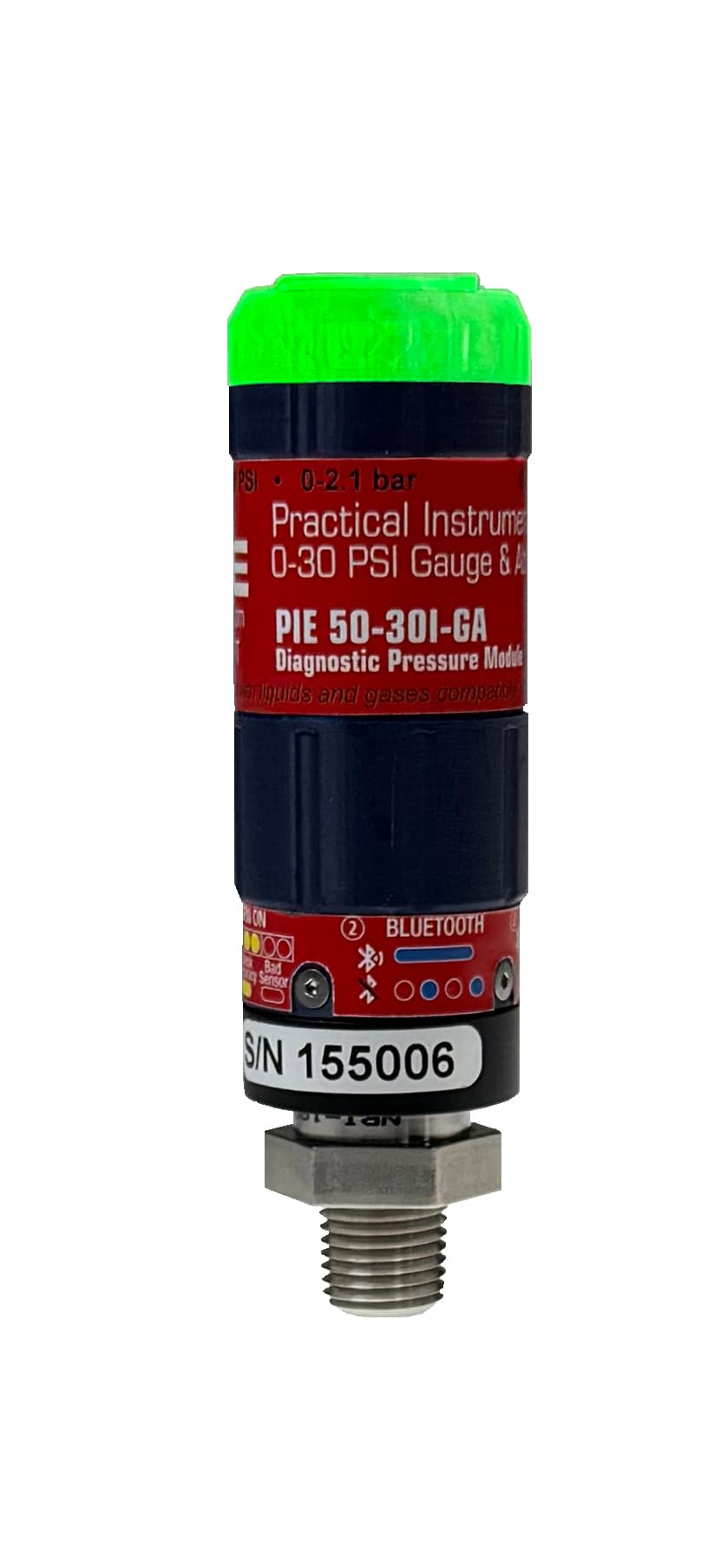

PIE PM-50 Wireless Pressure Module
Ultra-compact Bluetooth wireless diagnostic pressure modules (±0.035% of span) with optional cable connection to PIE calibrators and the PIE Pressure App.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The PIE PM-50 Series wireless diagnostic pressure modules connect by Bluetooth to PIE 900-series calibrators and to Android/iOS devices running the PIE Pressure App, or by communications cable to PIE 820-ELITE, 830, and 850 calibrators. Mount the module directly on a pump or process instrument to measure without long tubing runs.
Main-sensor accuracy is ±0.035% of span; the internal barometric sensor is accurate to ±0.01 psi per the PM-50 datasheet. Isolated sensors are compatible with fluids and gases compatible with 316L stainless steel. Multi-color LEDs indicate sensor health, Bluetooth connectivity, and battery level; patented self-diagnostics (U.S. Patent 11,815,364) help confirm the module is ready to use. Gauge and absolute readings are available from a single module using the external process sensor plus the internal atmospheric sensor.
Five isolated gauge ranges: 0–30, 0–100, 0–300, 0–500, and 0–1500 psi. Includes calibration card, USB-C charger (020-0109), and USB-C cable. Optional cable 020-0108 connects to 820-ELITE/830/850.
Specifications
| Accuracy | |
| Main sensor | ±0.035% of Span |
| Barometric sensor | ±0.01 psi |
| Ranges | |
| Available (isolated GA) | PM50-30i-GA 0–30 psi; 100i 0–100; 300i 0–300; 500i 0–500; 1500i 0–1500 psi |
| Media | |
| Compatibility | Isolated; fluids & gases compatible with 316/316L stainless steel |
| Connectivity | |
| Wireless / wired | Bluetooth to PIE 900 series & PIE Pressure App; cable to 820-ELITE, 830, 850 (020-0108) |
| Features | |
| Engineering units | 32 selectable pressure units |
| Diagnostics | Patented self-diagnostics; multi-color LEDs for sensor, battery, Bluetooth; overpressure indication |
| Environmental | |
| Operating temperature | −20 to 60 °C (−5 to 140 °F) |
| Mechanical | |
| Size / weight | Length 4.055 in (103 mm); diameter 1.2 in (30.5 mm); 4.45 oz (0.126 kg) |
| Power | |
| Battery | NiMH; ~8 hours life; LED battery indication |
| General | |
| Included | Calibration card; A/C USB-C charger 020-0109; USB-C to USB-C cable |
| Overpressure | Protection to 2× maximum pressure |
Build your part number
Configure your PIE-PM-50
Pick your options and we'll build the exact part number - 5 configurations match so far.
Select 1 more option to get your part number and price.
Ordering information
5 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| PIE-PM-50-100i-GA | Bluetooth enabled diagnostic pressue module 0.000 - 100.000 psi | $2,199.00 | |
| PIE-PM-50-1500i-GA | Bluetooth enabled diagnostic pressue module 0.000 - 1500.0 psi | $2,199.00 | |
| PIE-PM-50-300i-GA | Bluetooth enabled diagnostic pressure module 0.000 - 300.000 psi | $2,199.00 | |
| PIE-PM-50-30i-GA | Bluetooth enabled diagnostic pressue module 0.000 - 30.000 psi | $2,199.00 | |
| PIE-PM-50-500i-GA | Bluetooth enabled diagnostic pressure module 0.000 - 500.000 psi | $2,199.00 |
