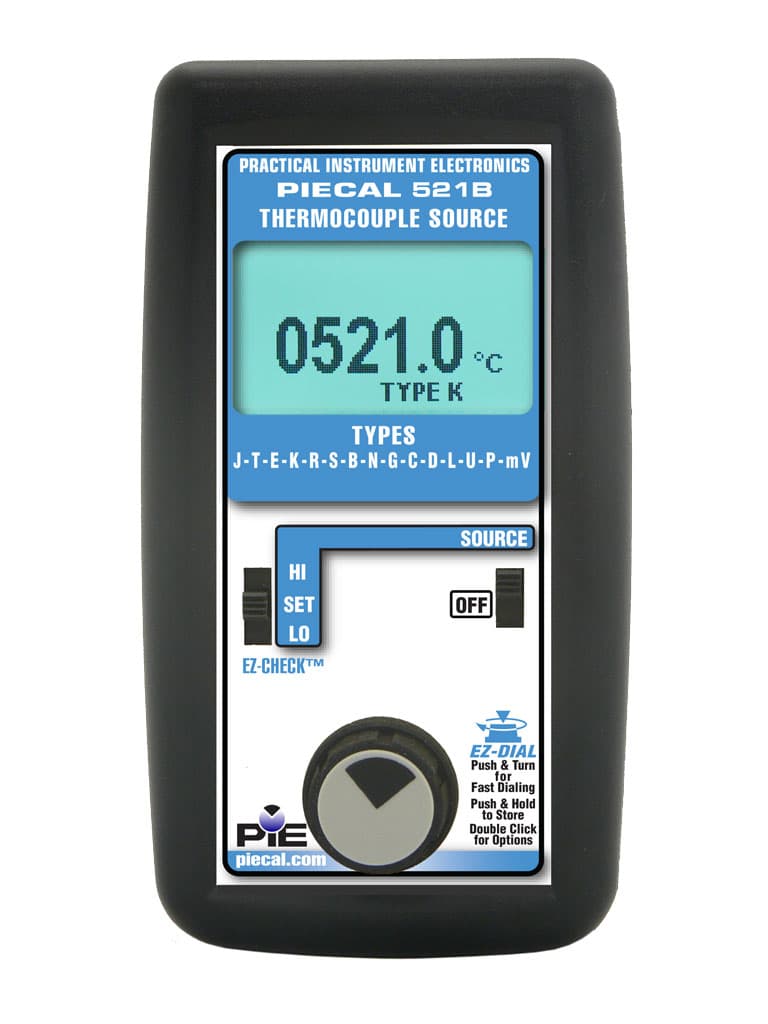

PIE 521B Thermocouple Source
Fourteen-type thermocouple source with ±(0.015% of reading + 0.009 mV) accuracy and ±0.25 °C cold-junction compensation for mixed T/C fleets.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The PIECAL 521B includes all fourteen thermocouple types supported by the 520B family—J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN), and P—so one source covers plant-wide T/C needs. Source in temperature or millivolts (−13.000 to 80.000 mV).
Headline accuracy is ±(0.015% of reading + 0.009 mV) with ±0.25 °C cold-junction compensation. Digital dial resolution to 0.1° and EZ-CHECK three-point recall speed field checks of transmitters and recorders.
Compact handheld with backlit display; optional rubber boot with tilt stand. Made in the USA with NIST-traceable Certificate of Calibration.
Specifications
| Accuracy | |
| mV / T/C (excludes CJ) | ±(0.015% of Reading + 0.009 mV) |
| Cold junction compensation | ±0.25 °C (±0.45 °F) |
| Ranges | |
| Thermocouple types included | All 14: J, K, T, E, R, S, B, N, G, C, D, L, U, P |
| Millivolt | −13.000 to 80.000 mV |
| Source/Read | |
| Functions | Thermocouple / mV source (simulate) |
| Power | |
| Batteries / life | Four AA alkaline; 50 hours |
| Environmental | |
| Operating temperature | −25 to 60 °C (−10 to 140 °F) |
| General | |
| Size / weight | 4.96 × 2.73 × 1.79 in; 8.4 oz (with batteries) |
| Origin / cal | Made in USA; NIST-traceable Certificate of Calibration |
Documents
Build your part number
Configure your PIE-521B
Pick your options and we'll build the exact part number with a list-price estimate.
Select a package to build your part number.
Choose Standard or Basic Package.
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| PIE-521B-BP | $999.00 |
