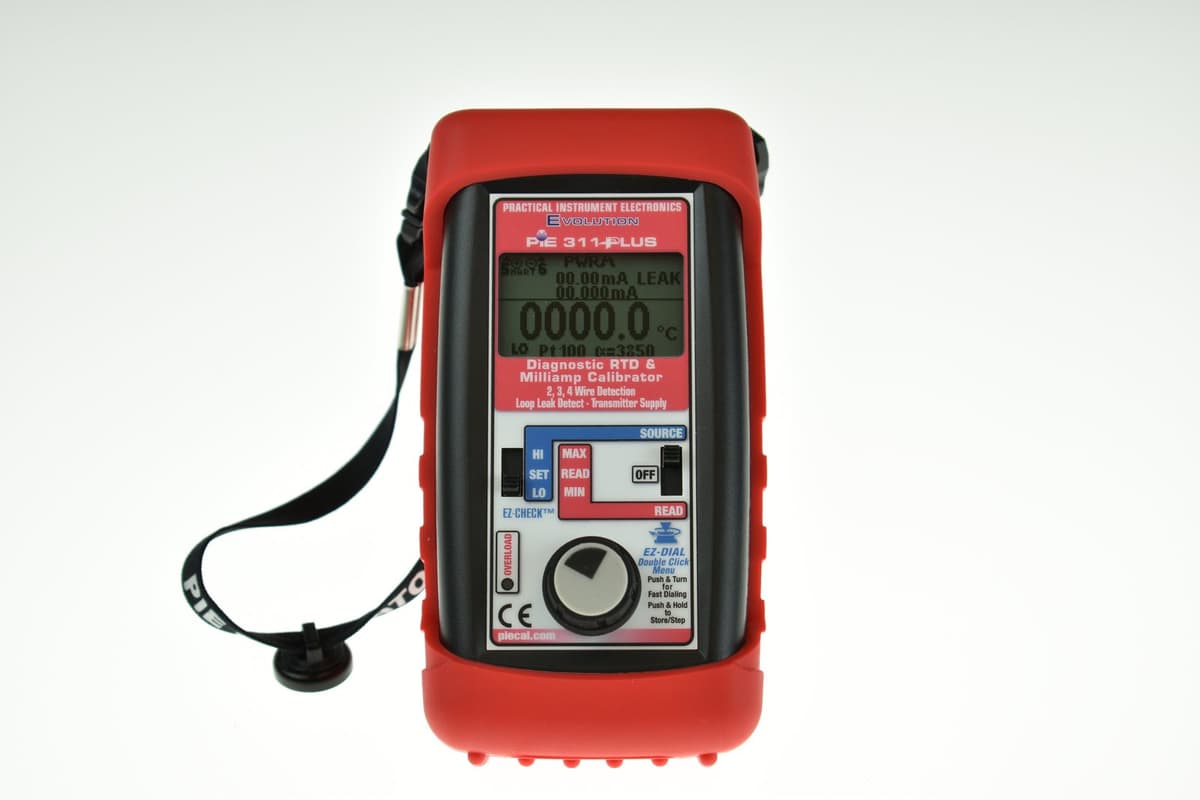

PIE 311Plus Diagnostic RTD and Milliamp Calibrator
Diagnostic 2-in-1 RTD and milliamp calibrator with laboratory RTD accuracy ±(0.015% of reading + 0.05 Ω), 0–24 mA loop functions, and patented ground-leak detection.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The PIE 311Plus combines a full-function diagnostic milliamp calibrator with a laboratory-grade RTD calibrator in one palm-sized instrument. Source and read 0.000 to 24.000 mA, simulate two-wire transmitters, power and measure transmitters with an internal 24 V supply, and use the built-in 250 Ω resistor for HART compatibility—plus PIE’s patented Ground Leak Detection (US Patent 7,248,058).
The RTD side sources and reads 12 RTD types including Platinum 10, 50, 100, 200, 500 & 1000 Ω (α = 3850); Platinum 100 Ω (α = 3902, 3916, 3926); Copper 10 & 50 Ω; and Nickel 120 Ω. Resistance ranges cover 0.00 to 401.00 Ω and 0.0 to 4010.0 Ω. Automatic connection indication and secondary displays of resistance and excitation current help troubleshoot sensor wiring and instrument inputs.
Automatic stepping (2–21 steps) and EZ-CHECK make loop and temperature calibration fast in the plant or field. Rubber boot and backlit display included. Made in the USA with NIST-traceable calibration.
Specifications
| Accuracy | |
| RTD/Ω 3 & 4 wire (1–10.2 mA) | ±(0.015% of Reading + 0.05 Ohms) |
| Pt 100 Ω (α=3850), −200 to −150 °C | ±0.1 °C |
| Ranges | |
| Resistance | 0.00 to 401.00 Ω; 0.0 to 4010.0 Ω |
| RTD types supported | 12 types: Pt 10/50/100/200/500/1000 (3850), Pt 100 (3902/3916/3926), Cu 10/50, Ni 120 |
| Source/Read | |
| mA functions | Source/read 0.000–24.000 mA; 2-wire TX simulate; 24 V power & measure; 250 Ω HART |
| Diagnostics | Patented Ground Leak Detection; RTD wire/fault indication |
| Power | |
| Batteries / life | Four AA alkaline; 25 h RTD, 8 h milliamp |
| Environmental | |
| Operating temperature | −25 to 60 °C (−10 to 140 °F) |
| General | |
| Isolation | 60 V rms between milliamp functions and Source/Read RTD/Ohms |
| Size / weight | 5.63 × 3.00 × 1.60 in; 12.1 oz with boot & batteries |
| Origin / cal | Made in USA; NIST-traceable Certificate of Calibration |
Documents
Build your part number
Configure your PIE-311PLUS
Pick your options and we'll build the exact part number with a list-price estimate.
Select a package to build your part number.
Choose Standard or Basic Package.
Ordering information
1 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| PIE-311PLUS-BP | LeakDetect and RTD AutoDetect. Includes NIST traceable cert and rubber | $2,379.00 |
