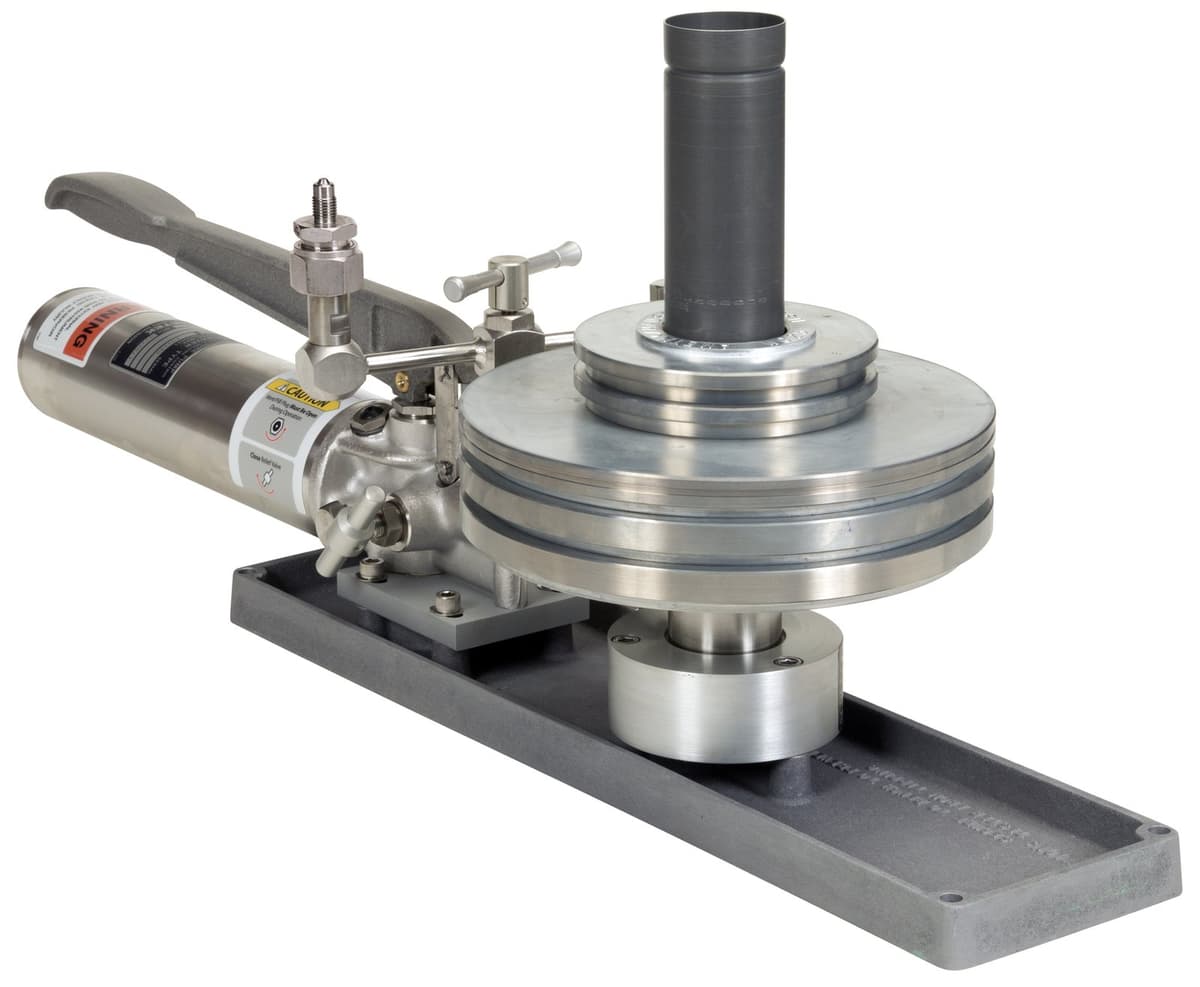

Mansfield & Green Type T Hydraulic Deadweight Tester
Model TYPET
Hydraulic piston deadweight tester to 15,000 psi / 1,000 bar. Single or dual column/piston. Accuracy to ±0.015% of reading. Portal From $10,860 (T-5).
From $10,860.00list price
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Mansfield & Green Type T is AMETEK's hydraulic re-entrant piston/cylinder deadweight tester for field and laboratory use. Configurations include single-column single-piston, single-column dual-piston, and dual-column dual-piston models in imperial and metric ranges, with accuracies to ±0.015% of reading and ranges to 15,000 psi / 1,000 bar.
Complete tester configurations and USD list prices are from the AMETEK STC Distributors MG Products Price List USD 2026 (mg-usd-2026.pdf). Type T Comparator, pump-only SKUs, parts, and HydraLite (HL/HLG, discontinued) are not included on this page.
Official product page: https://www.ametekcalibration.com/products/pressure/deadweight-testers/type-t-hydraulic-deadweight-tester
Specifications
| Type | |
| Design | Hydraulic re-entrant piston/cylinder deadweight tester |
| Accuracy | |
| Available | ±0.100%, ±0.025%, and ±0.015% of reading (model dependent) |
| Range | |
| Pressure | Model dependent; to 15,000 psi / 1,000 bar / 100,000 kPa |
| Configs | |
| Columns / pistons | Single or dual column; single or dual piston; single or dual weight sets |
| Units | |
| Engineering units | psi, kg/cm², bar, kPa |
| Medium | |
| Standard | Water/alcohol mix; optional AAA oil |
| Brand | |
| Line | Mansfield & Green / AMETEK STC |
Documents
Build your part number
Configure your TYPET
Pick your options and we'll build the exact part number with a list-price estimate.
Select a complete tester configuration to build your part number.
Type T hydraulic deadweight tester. Choose a complete portal configuration (column/piston style, range, accuracy). Optional /OIL and /EPT|/VITON adders are order-time options (not expanded here). Type T Comparator and HydraLite held out. Prices from MG Products Price List USD 2026.
Ordering information
267 ordering models available - showing 100, use the filter to narrow down.
| Model | Description | List Price | |
|---|---|---|---|
| DM-T-100 | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–1,000 / 100–10,000 psi; ±0.100% rdg, standard gravity, no data | $18,011.00 | |
| DM-T-100-1/C | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–1,000 / 100–10,000 psi; ±0.025% rdg, standard gravity, with data | $20,066.00 | |
| DM-T-100-1L/C | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–1,000 / 100–10,000 psi; ±0.025% rdg, local gravity, with data | $21,607.00 | |
| DM-T-100/C | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–1,000 / 100–10,000 psi; ±0.100% rdg, standard gravity, with data | $20,066.00 | |
| DM-T-100-L | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–1,000 / 100–10,000 psi; ±0.100% rdg, local gravity, no data | $19,552.00 | |
| DM-T-100-L/C | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–1,000 / 100–10,000 psi; ±0.100% rdg, local gravity, with data | $21,607.00 | |
| DM-T-150 | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–1,500 / 100–15,000 psi; ±0.100% rdg, standard gravity, no data | $19,845.00 | |
| DM-T-150-1/C | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–1,500 / 100–15,000 psi; ±0.025% rdg, standard gravity, with data | $21,900.00 | |
| DM-T-150-1L/C | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–1,500 / 100–15,000 psi; ±0.025% rdg, local gravity, with data | $23,441.00 | |
| DM-T-150/C | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–1,500 / 100–15,000 psi; ±0.100% rdg, standard gravity, with data | $21,900.00 | |
| DM-T-150-L | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–1,500 / 100–15,000 psi; ±0.100% rdg, local gravity, no data | $21,386.00 | |
| DM-T-150-L/C | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–1,500 / 100–15,000 psi; ±0.100% rdg, local gravity, with data | $23,441.00 | |
| DM-T-50 | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–500 / 100–5,000 psi; ±0.100% rdg, standard gravity, no data | $15,974.00 | |
| DM-T-50-1/C | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–500 / 100–5,000 psi; ±0.025% rdg, standard gravity, with data | $18,029.00 | |
| DM-T-50-1L/C | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–500 / 100–5,000 psi; ±0.025% rdg, local gravity, with data | $19,570.00 | |
| DM-T-50/C | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–500 / 100–5,000 psi; ±0.100% rdg, standard gravity, with data | $18,029.00 | |
| DM-T-50-L | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–500 / 100–5,000 psi; ±0.100% rdg, local gravity, no data | $17,515.00 | |
| DM-T-50-L/C | Type T DWT, Dual column, dual piston, single weight set, imperial, ±0.100%; range 10–500 / 100–5,000 psi; ±0.100% rdg, local gravity, with data | $19,570.00 | |
| DM-TQ-100000N | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–10,000 / 1,000–100,000 kPa; ±0.100% rdg, standard gravity, no data | $25,359.00 | |
| DM-TQ-100000N-1AL/C | Type T DWT, Dual column, dual piston, dual weight sets, metric, ±0.015%; range 100–10,000 / 1,000–100,000 kPa; ±0.015% rdg, local gravity, with data (standard) | $40,949.00 | |
| DM-TQ-100000N-1/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–10,000 / 1,000–100,000 kPa; ±0.025% rdg, standard gravity, with data | $27,414.00 | |
| DM-TQ-100000N-1L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–10,000 / 1,000–100,000 kPa; ±0.025% rdg, local gravity, with data | $28,955.00 | |
| DM-TQ-100000N/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–10,000 / 1,000–100,000 kPa; ±0.100% rdg, standard gravity, with data | $27,414.00 | |
| DM-TQ-100000N-L | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–10,000 / 1,000–100,000 kPa; ±0.100% rdg, local gravity, no data | $26,900.00 | |
| DM-TQ-100000N-L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–10,000 / 1,000–100,000 kPa; ±0.100% rdg, local gravity, with data | $28,955.00 | |
| DM-TQ-1000B | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–100 / 10–1,000 bar; ±0.100% rdg, standard gravity, no data | $25,359.00 | |
| DM-TQ-1000B-1AL/C | Type T DWT, Dual column, dual piston, dual weight sets, metric, ±0.015%; range 1–100 / 10–1,000 bar; ±0.015% rdg, local gravity, with data (standard) | $40,949.00 | |
| DM-TQ-1000B-1/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–100 / 10–1,000 bar; ±0.025% rdg, standard gravity, with data | $27,414.00 | |
| DM-TQ-1000B-1L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–100 / 10–1,000 bar; ±0.025% rdg, local gravity, with data | $28,955.00 | |
| DM-TQ-1000B/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–100 / 10–1,000 bar; ±0.100% rdg, standard gravity, with data | $27,414.00 | |
| DM-TQ-1000B-L | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–100 / 10–1,000 bar; ±0.100% rdg, local gravity, no data | $26,900.00 | |
| DM-TQ-1000B-L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–100 / 10–1,000 bar; ±0.100% rdg, local gravity, with data | $28,955.00 | |
| DM-TQ-1000M | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–100 / 10–1,000 kg/cm²; ±0.100% rdg, standard gravity, no data | $25,359.00 | |
| DM-TQ-1000M-1AL/C | Type T DWT, Dual column, dual piston, dual weight sets, metric, ±0.015%; range 1–100 / 10–1,000 kg/cm²; ±0.015% rdg, local gravity, with data (standard) | $40,949.00 | |
| DM-TQ-1000M-1/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–100 / 10–1,000 kg/cm²; ±0.025% rdg, standard gravity, with data | $27,414.00 | |
| DM-TQ-1000M-1L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–100 / 10–1,000 kg/cm²; ±0.025% rdg, local gravity, with data | $28,955.00 | |
| DM-TQ-1000M/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–100 / 10–1,000 kg/cm²; ±0.100% rdg, standard gravity, with data | $27,414.00 | |
| DM-TQ-1000M-L | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–100 / 10–1,000 kg/cm²; ±0.100% rdg, local gravity, no data | $26,900.00 | |
| DM-TQ-1000M-L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–100 / 10–1,000 kg/cm²; ±0.100% rdg, local gravity, with data | $28,955.00 | |
| DM-TQ-100-1AL/C | Type T DWT, Dual column, dual piston, dual weight sets, imperial, ±0.015%; range 10–1,000 / 100–10,000 psi; ±0.015% rdg, local gravity, with data (standard) | $41,687.00 | |
| DM-TQ-150-1AL/C | Type T DWT, Dual column, dual piston, dual weight sets, imperial, ±0.015%; range 10–1,500 / 100–15,000 psi; ±0.015% rdg, local gravity, with data (standard) | $51,250.00 | |
| DM-TQ-40000N | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–4,000 / 1,000–40,000 kPa; ±0.100% rdg, standard gravity, no data | $17,729.00 | |
| DM-TQ-40000N-1AL/C | Type T DWT, Dual column, dual piston, dual weight sets, metric, ±0.015%; range 100–4,000 / 1,000–40,000 kPa; ±0.015% rdg, local gravity, with data (standard) | $31,239.00 | |
| DM-TQ-40000N-1/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–4,000 / 1,000–40,000 kPa; ±0.025% rdg, standard gravity, with data | $19,784.00 | |
| DM-TQ-40000N-1L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–4,000 / 1,000–40,000 kPa; ±0.025% rdg, local gravity, with data | $21,325.00 | |
| DM-TQ-40000N/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–4,000 / 1,000–40,000 kPa; ±0.100% rdg, standard gravity, with data | $19,784.00 | |
| DM-TQ-40000N-L | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–4,000 / 1,000–40,000 kPa; ±0.100% rdg, local gravity, no data | $19,270.00 | |
| DM-TQ-40000N-L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–4,000 / 1,000–40,000 kPa; ±0.100% rdg, local gravity, with data | $21,325.00 | |
| DM-TQ-400B | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–40 / 10–400 bar; ±0.100% rdg, standard gravity, no data | $17,729.00 | |
| DM-TQ-400B-1AL/C | Type T DWT, Dual column, dual piston, dual weight sets, metric, ±0.015%; range 1–40 / 10–400 bar; ±0.015% rdg, local gravity, with data (standard) | $31,239.00 | |
| DM-TQ-400B-1/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–40 / 10–400 bar; ±0.025% rdg, standard gravity, with data | $19,784.00 | |
| DM-TQ-400B-1L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–40 / 10–400 bar; ±0.025% rdg, local gravity, with data | $21,325.00 | |
| DM-TQ-400B/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–40 / 10–400 bar; ±0.100% rdg, standard gravity, with data | $19,784.00 | |
| DM-TQ-400B-L | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–40 / 10–400 bar; ±0.100% rdg, local gravity, no data | $19,270.00 | |
| DM-TQ-400B-L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–40 / 10–400 bar; ±0.100% rdg, local gravity, with data | $21,325.00 | |
| DM-TQ-400M | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–40 / 10–400 kg/cm²; ±0.100% rdg, standard gravity, no data | $17,729.00 | |
| DM-TQ-400M-1AL/C | Type T DWT, Dual column, dual piston, dual weight sets, metric, ±0.015%; range 1–40 / 10–400 kg/cm²; ±0.015% rdg, local gravity, with data (standard) | $31,239.00 | |
| DM-TQ-400M-1/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–40 / 10–400 kg/cm²; ±0.025% rdg, standard gravity, with data | $19,784.00 | |
| DM-TQ-400M-1L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–40 / 10–400 kg/cm²; ±0.025% rdg, local gravity, with data | $21,325.00 | |
| DM-TQ-400M/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–40 / 10–400 kg/cm²; ±0.100% rdg, standard gravity, with data | $19,784.00 | |
| DM-TQ-400M-L | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–40 / 10–400 kg/cm²; ±0.100% rdg, local gravity, no data | $19,270.00 | |
| DM-TQ-400M-L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–40 / 10–400 kg/cm²; ±0.100% rdg, local gravity, with data | $21,325.00 | |
| DM-TQ-50-1AL/C | Type T DWT, Dual column, dual piston, dual weight sets, imperial, ±0.015%; range 10–500 / 100–5,000 psi; ±0.015% rdg, local gravity, with data (standard) | $32,119.00 | |
| DM-TQ-70000N | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–7,000 / 1,000–70,000 kPa; ±0.100% rdg, standard gravity, no data | $21,077.00 | |
| DM-TQ-70000N-1AL/C | Type T DWT, Dual column, dual piston, dual weight sets, metric, ±0.015%; range 100–7,000 / 1,000–70,000 kPa; ±0.015% rdg, local gravity, with data (standard) | $36,100.00 | |
| DM-TQ-70000N-1/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–7,000 / 1,000–70,000 kPa; ±0.025% rdg, standard gravity, with data | $23,132.00 | |
| DM-TQ-70000N-1L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–7,000 / 1,000–70,000 kPa; ±0.025% rdg, local gravity, with data | $24,673.00 | |
| DM-TQ-70000N/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–7,000 / 1,000–70,000 kPa; ±0.100% rdg, standard gravity, with data | $23,132.00 | |
| DM-TQ-70000N-L | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–7,000 / 1,000–70,000 kPa; ±0.100% rdg, local gravity, no data | $22,618.00 | |
| DM-TQ-70000N-L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 100–7,000 / 1,000–70,000 kPa; ±0.100% rdg, local gravity, with data | $24,673.00 | |
| DM-TQ-700B | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–70 / 10–700 bar; ±0.100% rdg, standard gravity, no data | $21,077.00 | |
| DM-TQ-700B-1AL/C | Type T DWT, Dual column, dual piston, dual weight sets, metric, ±0.015%; range 1–70 / 10–700 bar; ±0.015% rdg, local gravity, with data (standard) | $36,100.00 | |
| DM-TQ-700B-1/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–70 / 10–700 bar; ±0.025% rdg, standard gravity, with data | $23,132.00 | |
| DM-TQ-700B-1L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–70 / 10–700 bar; ±0.025% rdg, local gravity, with data | $24,673.00 | |
| DM-TQ-700B/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–70 / 10–700 bar; ±0.100% rdg, standard gravity, with data | $23,132.00 | |
| DM-TQ-700B-L | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–70 / 10–700 bar; ±0.100% rdg, local gravity, no data | $22,618.00 | |
| DM-TQ-700B-L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–70 / 10–700 bar; ±0.100% rdg, local gravity, with data | $24,673.00 | |
| DM-TQ-700M | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–70 / 10–700 kg/cm²; ±0.100% rdg, standard gravity, no data | $21,077.00 | |
| DM-TQ-700M-1AL/C | Type T DWT, Dual column, dual piston, dual weight sets, metric, ±0.015%; range 1–70 / 10–700 kg/cm²; ±0.015% rdg, local gravity, with data (standard) | $36,100.00 | |
| DM-TQ-700M-1/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–70 / 10–700 kg/cm²; ±0.025% rdg, standard gravity, with data | $23,132.00 | |
| DM-TQ-700M-1L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–70 / 10–700 kg/cm²; ±0.025% rdg, local gravity, with data | $24,673.00 | |
| DM-TQ-700M/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–70 / 10–700 kg/cm²; ±0.100% rdg, standard gravity, with data | $23,132.00 | |
| DM-TQ-700M-L | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–70 / 10–700 kg/cm²; ±0.100% rdg, local gravity, no data | $22,618.00 | |
| DM-TQ-700M-L/C | Type T DWT, Dual column, dual piston, single weight set, metric, ±0.100%; range 1–70 / 10–700 kg/cm²; ±0.100% rdg, local gravity, with data | $24,673.00 | |
| T-10 | Type T DWT, Single column, single piston, imperial, ±0.100%; range 10 to 1,000 psi; ±0.100% rdg, standard gravity, no data | $12,534.00 | |
| T-100 | Type T DWT, Single column, dual piston, imperial, ±0.100%; range 10–1,000 / 100–10,000 psi dual piston; ±0.100% rdg, standard gravity, no data | $14,498.00 | |
| T-100-1/C | Type T DWT, Single column, dual piston, imperial, ±0.100%; range 10–1,000 / 100–10,000 psi dual piston; ±0.025% rdg, standard gravity, with data | $16,553.00 | |
| T-100-1L/C | Type T DWT, Single column, dual piston, imperial, ±0.100%; range 10–1,000 / 100–10,000 psi dual piston; ±0.025% rdg, local gravity, with data | $18,094.00 | |
| T-100/C | Type T DWT, Single column, dual piston, imperial, ±0.100%; range 10–1,000 / 100–10,000 psi dual piston; ±0.100% rdg, standard gravity, with data | $16,553.00 | |
| T-100-L | Type T DWT, Single column, dual piston, imperial, ±0.100%; range 10–1,000 / 100–10,000 psi dual piston; ±0.100% rdg, local gravity, no data | $16,039.00 | |
| T-100-L/C | Type T DWT, Single column, dual piston, imperial, ±0.100%; range 10–1,000 / 100–10,000 psi dual piston; ±0.100% rdg, local gravity, with data | $18,094.00 | |
| T-10-1/C | Type T DWT, Single column, single piston, imperial, ±0.100%; range 10 to 1,000 psi; ±0.025% rdg, standard gravity, with data | $14,589.00 | |
| T-10-1L/C | Type T DWT, Single column, single piston, imperial, ±0.100%; range 10 to 1,000 psi; ±0.025% rdg, local gravity, with data | $16,130.00 | |
| T-10/C | Type T DWT, Single column, single piston, imperial, ±0.100%; range 10 to 1,000 psi; ±0.100% rdg, standard gravity, with data | $14,589.00 | |
| T-10-L | Type T DWT, Single column, single piston, imperial, ±0.100%; range 10 to 1,000 psi; ±0.100% rdg, local gravity, no data | $14,075.00 | |
| T-10-L/C | Type T DWT, Single column, single piston, imperial, ±0.100%; range 10 to 1,000 psi; ±0.100% rdg, local gravity, with data | $16,130.00 | |
| T-110-1/C | Type T DWT, Single column, single piston, imperial, ±0.100%; range 100 to 10,000 psi; ±0.025% rdg, standard gravity, with data | $15,450.00 | |
| T-110-1L/C | Type T DWT, Single column, single piston, imperial, ±0.100%; range 100 to 10,000 psi; ±0.025% rdg, local gravity, with data | $16,991.00 | |
| T-110/C | Type T DWT, Single column, single piston, imperial, ±0.100%; range 100 to 10,000 psi; ±0.100% rdg, standard gravity, with data | $15,450.00 | |
| T-110-L | Type T DWT, Single column, single piston, imperial, ±0.100%; range 100 to 10,000 psi; ±0.100% rdg, local gravity, no data | $14,936.00 |
