JOFRA STS-120 Reference Sensor
Pt100 reference sensor designed for fast, traceable calibration with JOFRA CTC temperature calibrators. Official type ranges cover −45 to 155°C, 0 to 350°C, and 0 to 660°C.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The STS Reference Sensors are Pt100 reference probes used as the reference instrument to verify true temperature in any type of hand-held, liquid bath, or dry-block calibrator. Official AMETEK series features include fast response times, low immersion depths, compact sizes, specified low drift, 90° angled probes, and accredited certificates up to 650°C as standard delivery.
The official JOFRA STS-120 A user manual states the probes are specially designed for fast and traceable calibration and temperature measuring with a JOFRA CTC temperature calibrator. Official type ranges: −45°C to 155°C / −49°F to 311°F (915); 0°C to 350°C / 32°F to 662°F (935); 0°C to 660°C / 32°F to 1220°F (966). The official STS selection guide lists STS-120 as a Pt100 reference sensor, solid, with intelligence, typically as a 90° angled sensor for CTC calibrators.
Official sources: https://www.ametekcalibration.com/products/temperature/reference-temperature-sensors/sts-reference-sensors and https://www.ametekcalibration.com/-/media/ametekcalibration/download_links/temperature-sensors/sts/superior-temperature-sensors-sts-120-user-manual-us.pdf
Specifications
| Sensor | |
| Type | Pt100 reference sensor, solid, with intelligence |
| Range | |
| Type 915 | −45 to 155°C (−49 to 311°F) |
| Type 935 | 0 to 350°C (32 to 662°F) |
| Type 966 | 0 to 660°C (32 to 1220°F) |
| Compatibility | |

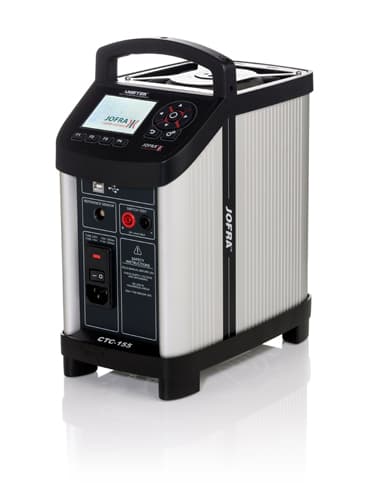

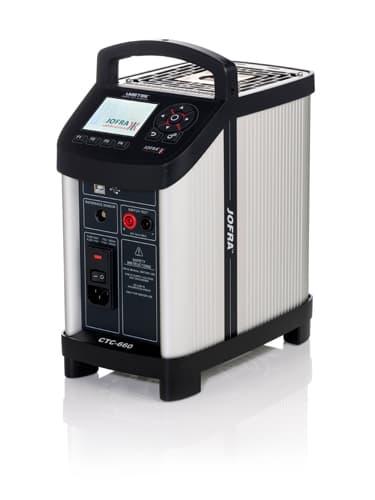

| Calibrator | Designed for JOFRA CTC temperature calibrators |
Documents
Ordering information
7 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| STS120:cable:E | Cable 0.5 m (1.6 ft.) with LEMO / Redel connector for Calibrator | Request a quote | |
| STS120:cert:H | Accredited Certificate - ISO17025 | Request a quote | |
| STS120:cert:I | No Certificate - Annealed only * | Request a quote | |
| STS120:diameter-of-the-probe:A | Overall diameter 4 mm (0.16 in) | Request a quote | |
| STS120:shape-and-lenght:915 | 90° Angled probe, | $1,876.00 | |
| STS120:shape-and-lenght:935 | 90° Angled probe | $2,006.00 | |
| STS120:shape-and-lenght:966 | 90° Angled probe | $2,114.00 |
