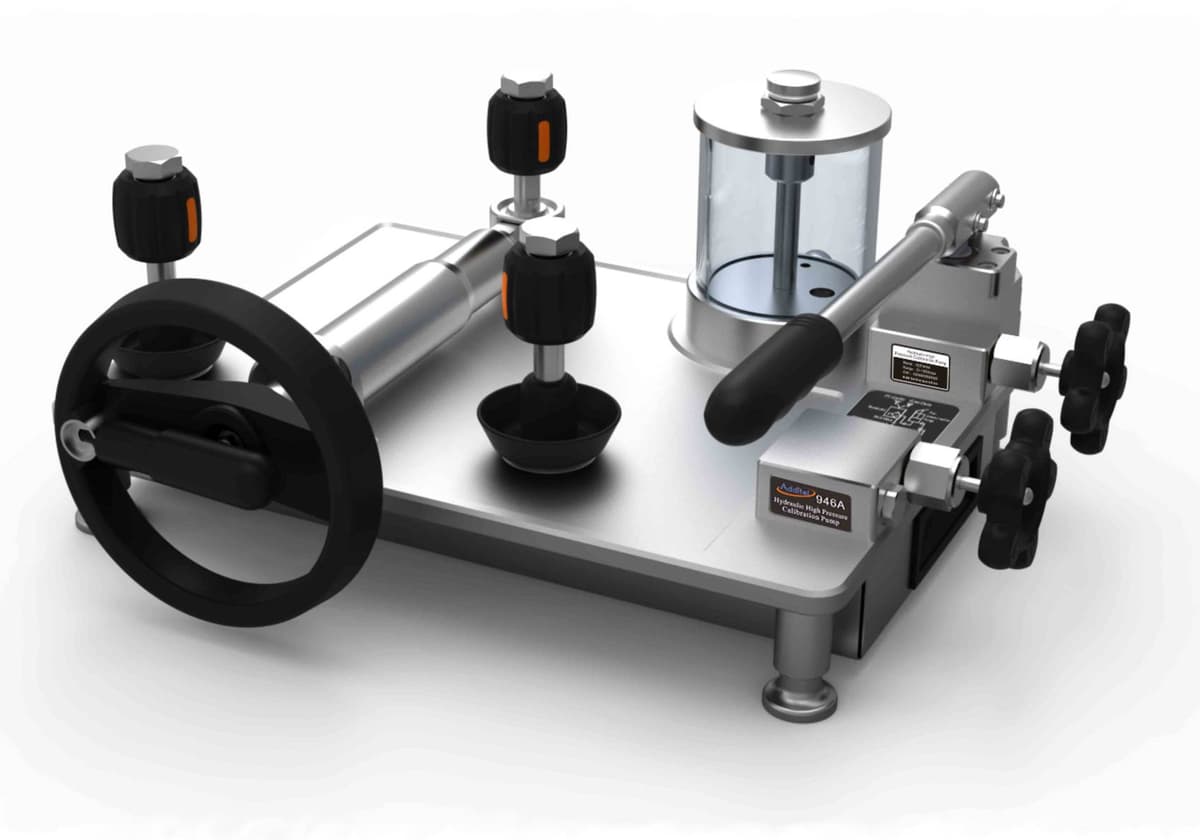

Additel 946A / 946AW Hydraulic High Pressure Calibration Pump
Benchtop hydraulic comparison test pump, 0 to 15,000 psi (15000 psi / 1,000 bar / 1000 bar). Dual-piston hand pump plus fine-adjust screw press, isolation valve, three hand-tight quick connectors. ADT946A ships for oil; order ADT946AW for deionized water. Pumps from $6,327.
Pick your exact configuration in the ordering table below to add it to your cart.
Same-day response on quotes. ISO/IEC 17025 accredited calibration available.
Overview
The Additel 946A is a benchtop hydraulic comparison test pump designed to generate 0 to 15,000 psi (1,000 bar) gauge. A dual-piston system uses the hand pump to fill large-volume workloads, then a high-pressure fine-adjust screw press to raise and lower pressure smoothly. An isolation valve separates the calibration volume from the hand-pump check valve — a common leak and maintenance point — so measurements stay more stable and the pump needs less service. Three hand-tight quick connectors take the test gauge and reference gauge(s) without PTFE tape or wrenches.
ADT946A ships with mineral oil as the default media (250 ml included). Order ADT946AW when the media must be deionized water. Additel notes that stability is best with oil and that performance may decrease with water. The reservoir is 25.6 in3 (420 ml). Port choices are 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20x1.5 female. SET models add the 9910 carrying case. The pump weighs 26.5 lb (12 kg); height 7.8 in (200 mm), base 18.1 x 14.3 in (460 x 365 mm).
Compared with the handheld Additel 925 (85% vacuum to 6,000 psi / 400 bar, 3.7 lb) and Additel 927 (85% vacuum to 10,000 psi / 700 bar, 7 lb), the 946A is a bench hydraulic pump to 15,000 psi. This page is the 946A / 946AW family only.
Pumps from $6,327 (ADT946A). ADT946AW from $7,697. A maintenance kit (ADT946A-MK) is listed with the variants.
Specifications
| Pressure | |
| Generated range | 0 to 15,000 psi (1,000 bar) gauge |
| Media | Mineral oil (ADT946A default) or deionized water (order ADT946AW). Stability is best with oil; performance may decrease with water |
| Reservoir | 25.6 in3 (420 ml) |
| Pump | Dual-piston: hand pump to fill large volume plus high-pressure fine-adjust screw press |
| Isolation valve | Isolates the calibration volume from the hand-pump check valve for stable measurements and less check-valve maintenance |
| Piston volume | Fine-adjust piston 0.152 in3 (2.5 ml); volume per stroke 0.23 in3 (3.72 ml) |
| Connections | |
| Quick connectors | Three hand-tight connectors for test and reference gauges — no PTFE tape or wrenches |
| Port types | 1/4 NPT, 1/2 NPT, 1/4 BSP, 1/2 BSP, or M20x1.5 female |
| General | |
| Weight | 26.5 lb (12 kg) |
| Dimensions | Height 7.8 in (200 mm); base 18.1 x 14.3 in (460 x 365 mm) |
| Materials | Ram/adapters SS; body SS, aluminum, copper; seals Buna-N |
| Included | Mineral oil 250 ml (not when water media is requested); 20 O-rings. SET models add 9910 carrying case |
| Models | ADT946A (oil) and ADT946AW (water); optional -SET carrying case; ADT946A-MK maintenance kit |
| Warranty | 1 year |
| Family | |
| vs Additel 925 | 925 is a handheld hydraulic pump, 85% vacuum to 6,000 psi (400 bar), 3.7 lb. 946A is a bench pump to 15,000 psi |
| vs Additel 927 | 927 is the next handheld hydraulic step: 85% vacuum to 10,000 psi (700 bar), 7 lb. 946A is benchtop to 15,000 psi |
| General | |
| Starting price | Pumps from $6,327 (ADT946A); ADT946AW from $7,697 |
Documents
Ordering information
21 ordering models available.
| Model | Description | List Price | |
|---|---|---|---|
| ADT946A-B | Hydraulic High Pressure Calibration Pump, 0 to 15000 psi (1000 bar), 1/4BSP F | $6,327.00 | |
| ADT946A-B2 | Hydraulic High Pressure Calibration Pump, 0 to 15000 psi (1000 bar), 1/2BSP F | $6,327.00 | |
| ADT946A-B2-SET | Hydraulic High Pressure Calibration Pump, 0 to 15000 psi (1000 bar), 1/2BSP F with carrying case | $7,398.00 | |
| ADT946A-B-SET | Hydraulic High Pressure Calibration Pump, 0 to 15000 psi (1000 bar), 1/4BSP F with carrying case | $7,398.00 | |
| ADT946A-M | Hydraulic High Pressure Calibration Pump, 0 to 15000 psi (1000 bar), M20X1.5 F | $6,327.00 | |
| ADT946A-MK | Maintenance kit for ADT946 and ADT946A Generator | $129.00 | |
| ADT946A-M-SET | Hydraulic High Pressure Calibration Pump, 0 to 15000 psi (1000 bar), M20X1.5 F with carrying case | $7,398.00 | |
| ADT946A-N | Hydraulic High Pressure Calibration Pump, 0 to 15000 psi (1000 bar), 1/4NPT F | $6,327.00 | |
| ADT946A-N2 | Hydraulic High Pressure Calibration Pump, 0 to 15000 psi (1000 bar), 1/2NPT F | $6,327.00 | |
| ADT946A-N2-SET | Hydraulic High Pressure Calibration Pump, 0 to 15000 psi (1000 bar), 1/2NPT F with carrying case | $7,398.00 | |
| ADT946A-N-SET | Hydraulic High Pressure Calibration Pump, 0 to 15000 psi (1000 bar), 1/4NPT F with carrying case | $7,398.00 | |
| ADT946AW-B | Hydraulic High Pressure Calibration Pump, for Use with Water, 0 to 15000 psi (1000 bar), 1/4BSP F | $7,697.00 | |
| ADT946AW-B2 | Hydraulic High Pressure Calibration Pump, for Use with Water, 0 to 15000 psi (1000 bar), 1/2BSP F | $7,697.00 | |
| ADT946AW-B2-SET | Hydraulic High Pressure Calibration Pump, for Use with Water, 0 to 15000 psi (1000 bar), 1/2BSP F with carrying case | $8,828.00 | |
| ADT946AW-B-SET | Hydraulic High Pressure Calibration Pump, for Use with Water, 0 to 15000 psi (1000 bar), 1/4BSP F with carrying case | $8,828.00 | |
| ADT946AW-M | Hydraulic High Pressure Calibration Pump, for Use with Water, 0 to 15000 psi (1000 bar), M20X1.5 F | $7,697.00 | |
| ADT946AW-M-SET | Hydraulic High Pressure Calibration Pump, for Use with Water, 0 to 15000 psi (1000 bar), M20X1.5 F with carrying case | $8,828.00 | |
| ADT946AW-N | Hydraulic High Pressure Calibration Pump, for Use with Water, 0 to 15000 psi (1000 bar), 1/4NPT F | $7,697.00 | |
| ADT946AW-N2 | Hydraulic High Pressure Calibration Pump, for Use with Water, 0 to 15000 psi (1000 bar), 1/2NPT F | $7,697.00 | |
| ADT946AW-N2-SET | Hydraulic High Pressure Calibration Pump, for Use with Water, 0 to 15000 psi (1000 bar), 1/2NPT F with carrying case | $8,828.00 | |
| ADT946AW-N-SET | Hydraulic High Pressure Calibration Pump, for Use with Water, 0 to 15000 psi (1000 bar), 1/4NPT F with carrying case | $8,828.00 |
